our products - MONARCH Competition and Sport Model



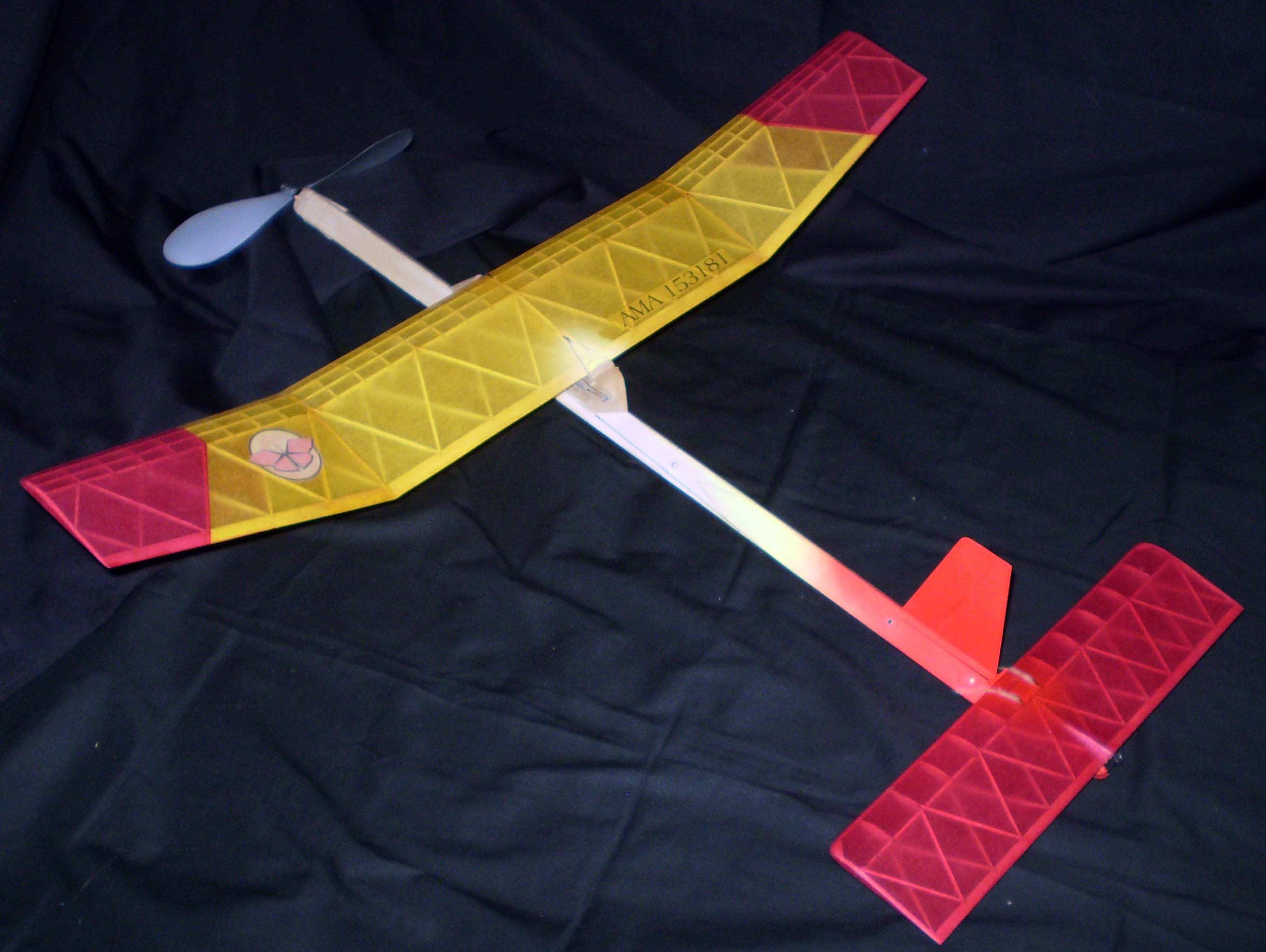

MONARCH
P-30 Competition and Sport Model

The Monarch is a turnkey kit ready for quick assembly and great flight performance

The Monarch represents the latest in our line of kits and a new standard for P-30 construction.

The Monarch is a robust model that builds easily with flight performance on par with its stable mate Boomer.  Features that allow this are the three panel wing, flat bottom AND unique flat top airfoil for both the wing and horizontal stabilizer.  No other P-30 on the market offers the unique truss rib structure that provides significant improvement for structural stiffness and resistance to twist.

And thats not all!  The kit you order includes all hardware to build and fly without any additional items to purchase.

The Button Classic viscous timer and Gizmogeezer Precision Free Wheeler propeller assembly are included as standard equipment in each kit along with all the necessary items to install a wing and stabilizer pop-up Dethermalizer system.

Treat yourself to a Monarch kit today and enjoy one of the best flying P-30 models around.



Kit features:

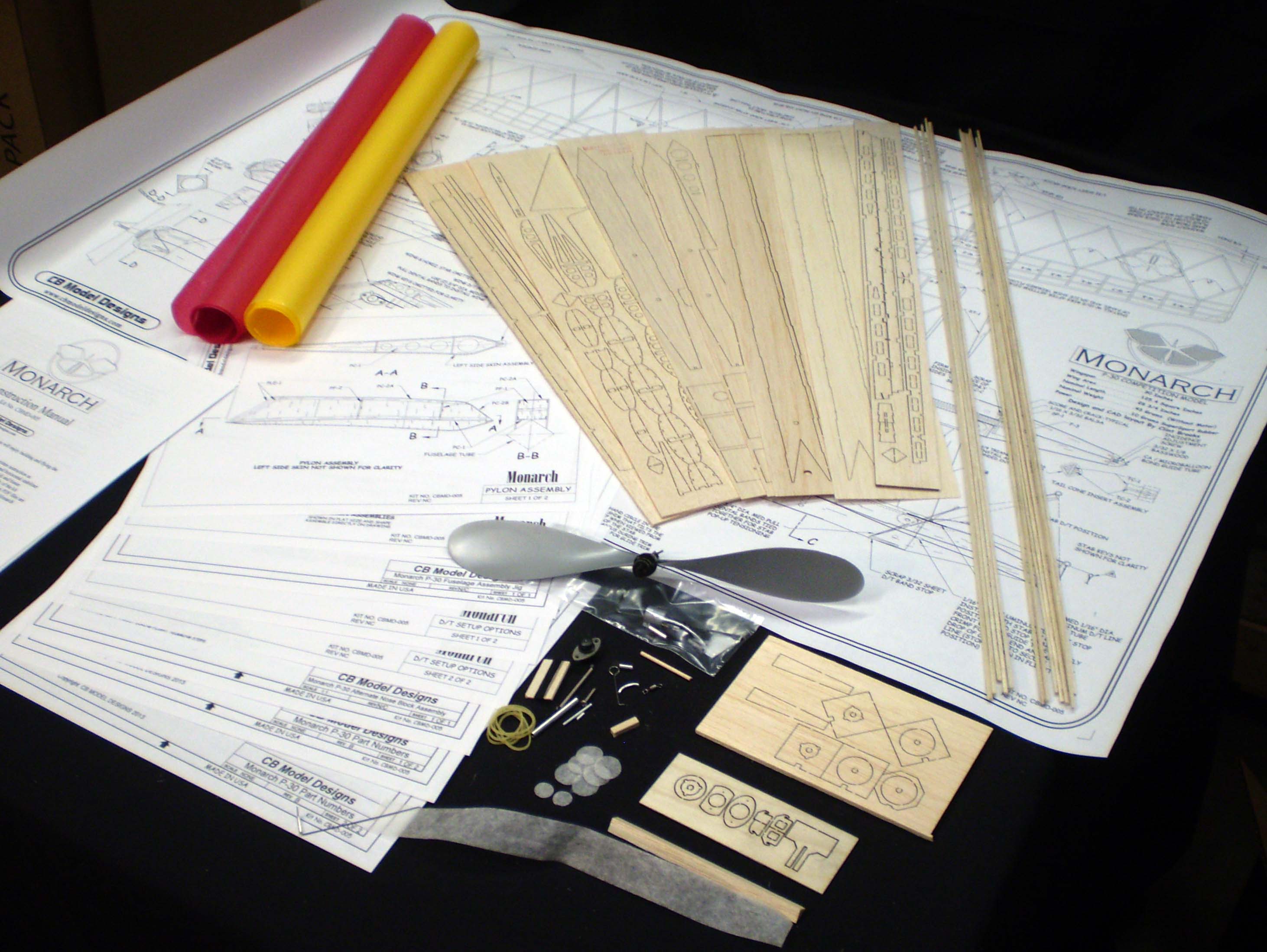

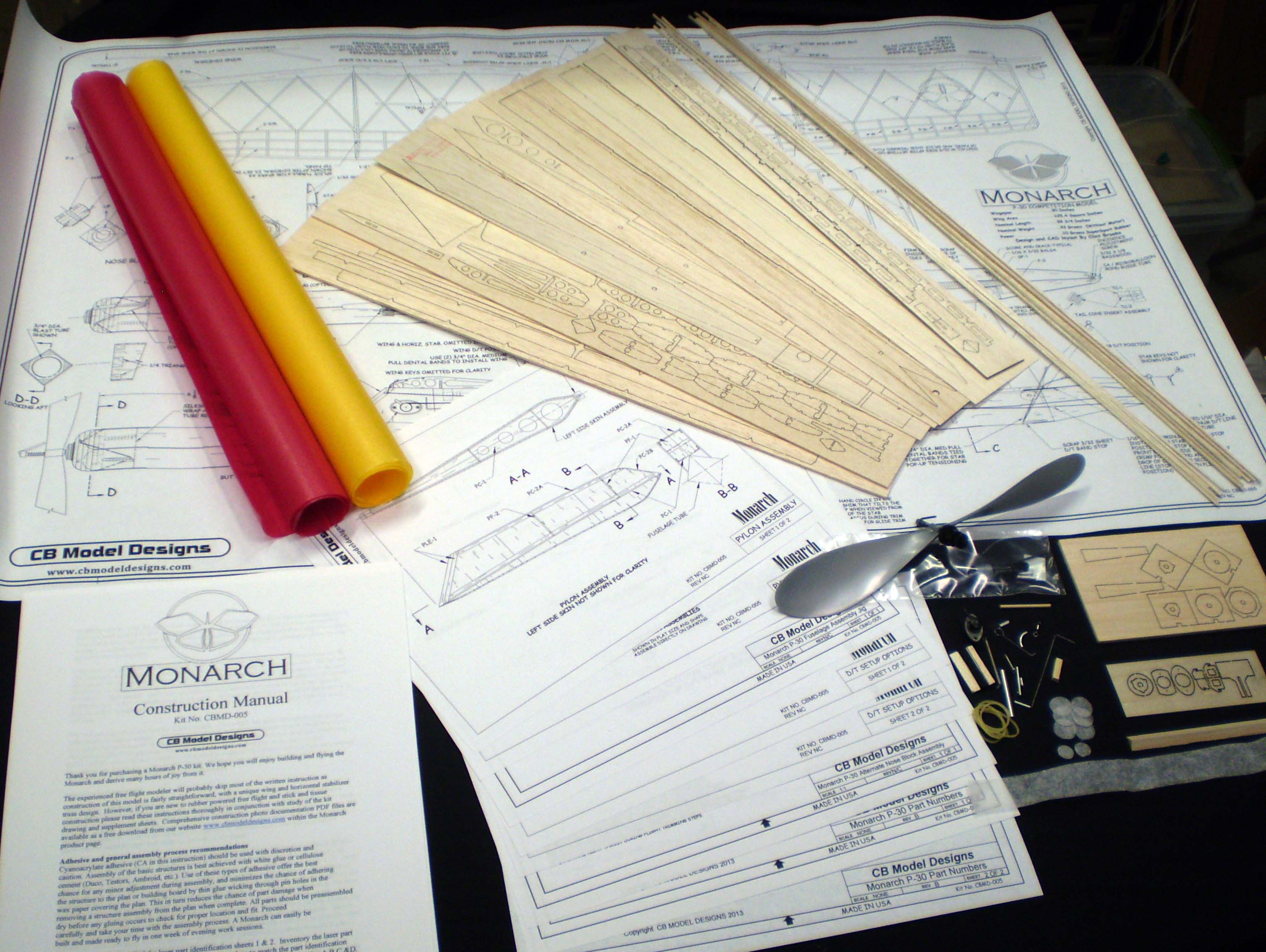

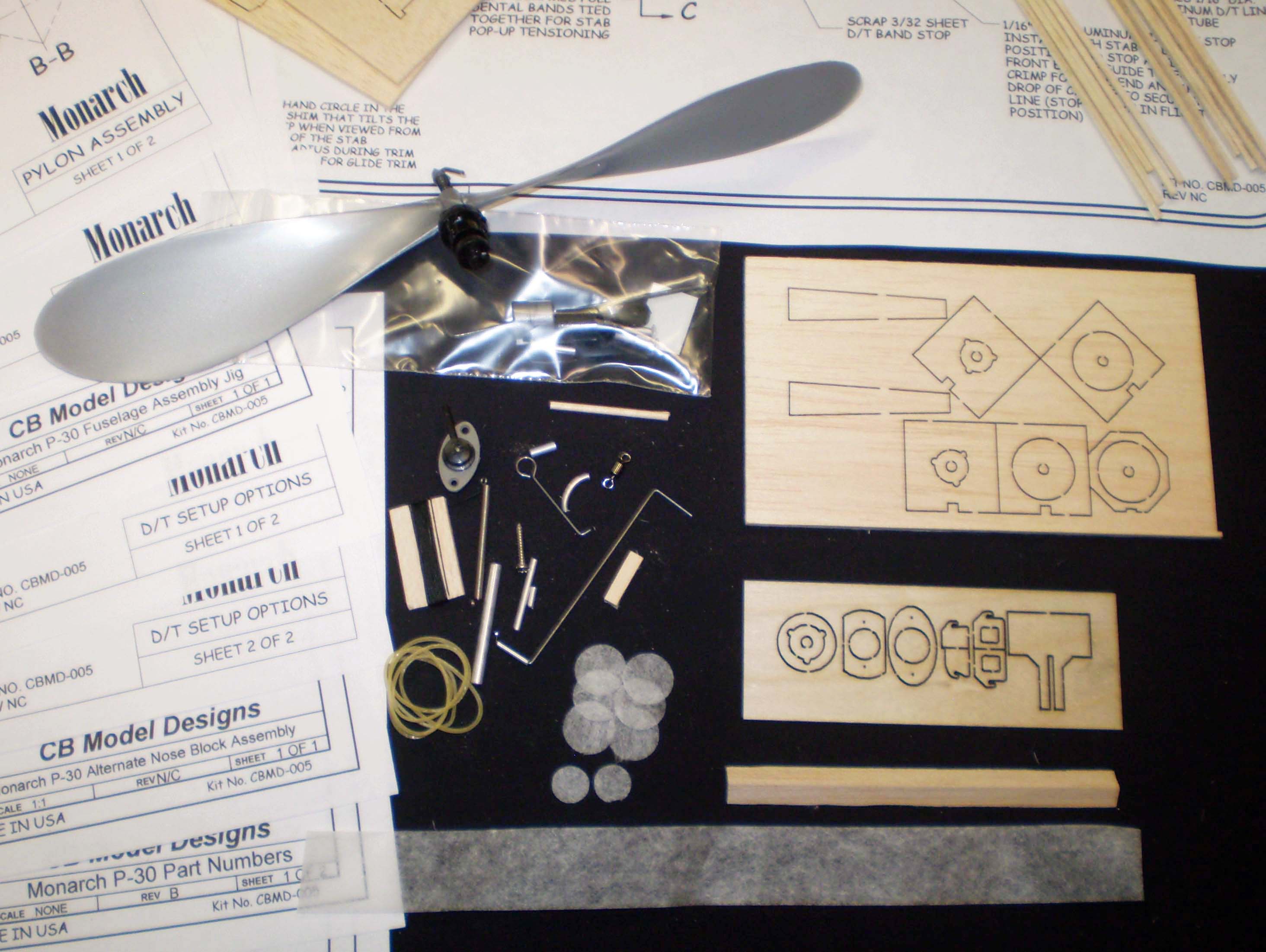

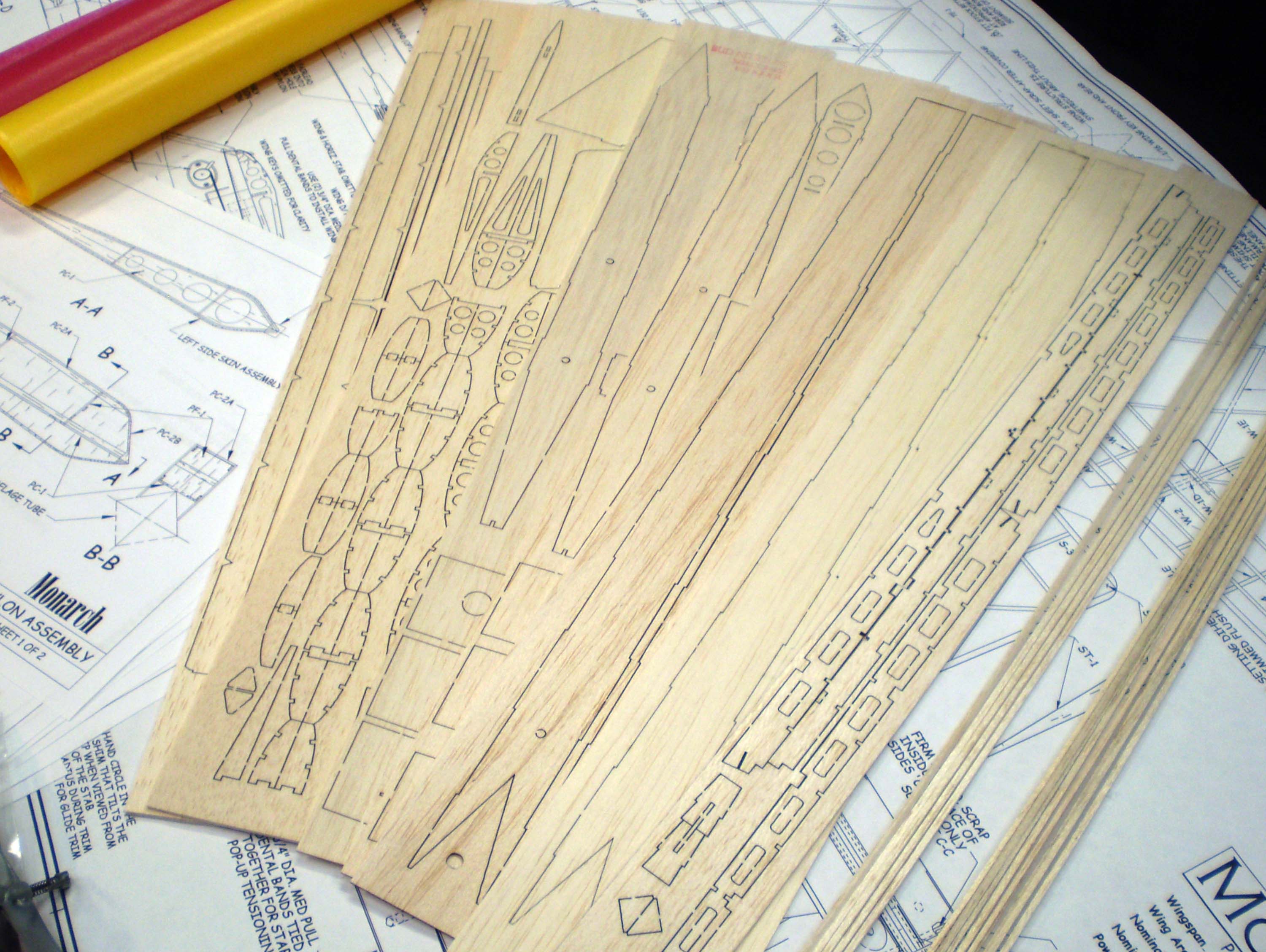

        Top quality laser cut balsa and plywood parts-fit checked and proven prior to kit design release

        Quality balsa strip stock

        Esaki Tissue covering consisting of one red and one yellow sheet

        Esaki Tissue printed wing logo for the Monarch

        CAD drawings for the model, simple fuselage construction tool design, alternate nose block construction for conventional prop system and alternate viscous timer and D/T setup included in the document package

        Detailed construction manual with laser part legend sheets

        Complete hardware package for everything noted on the kit drawing, including the dethermalizer system; there are no mystery requirements on this design

        Gizmogeezer Precision Free Wheeler prop assembly with accessories and instructions

        Button Classic viscous timer and mounting hardware

Design features of the Monarch:

        Sheet balsa fuselage with interlocking joint tabs for robust and accurate assembly

        Three motor peg positions designed into parts for variations in power performance

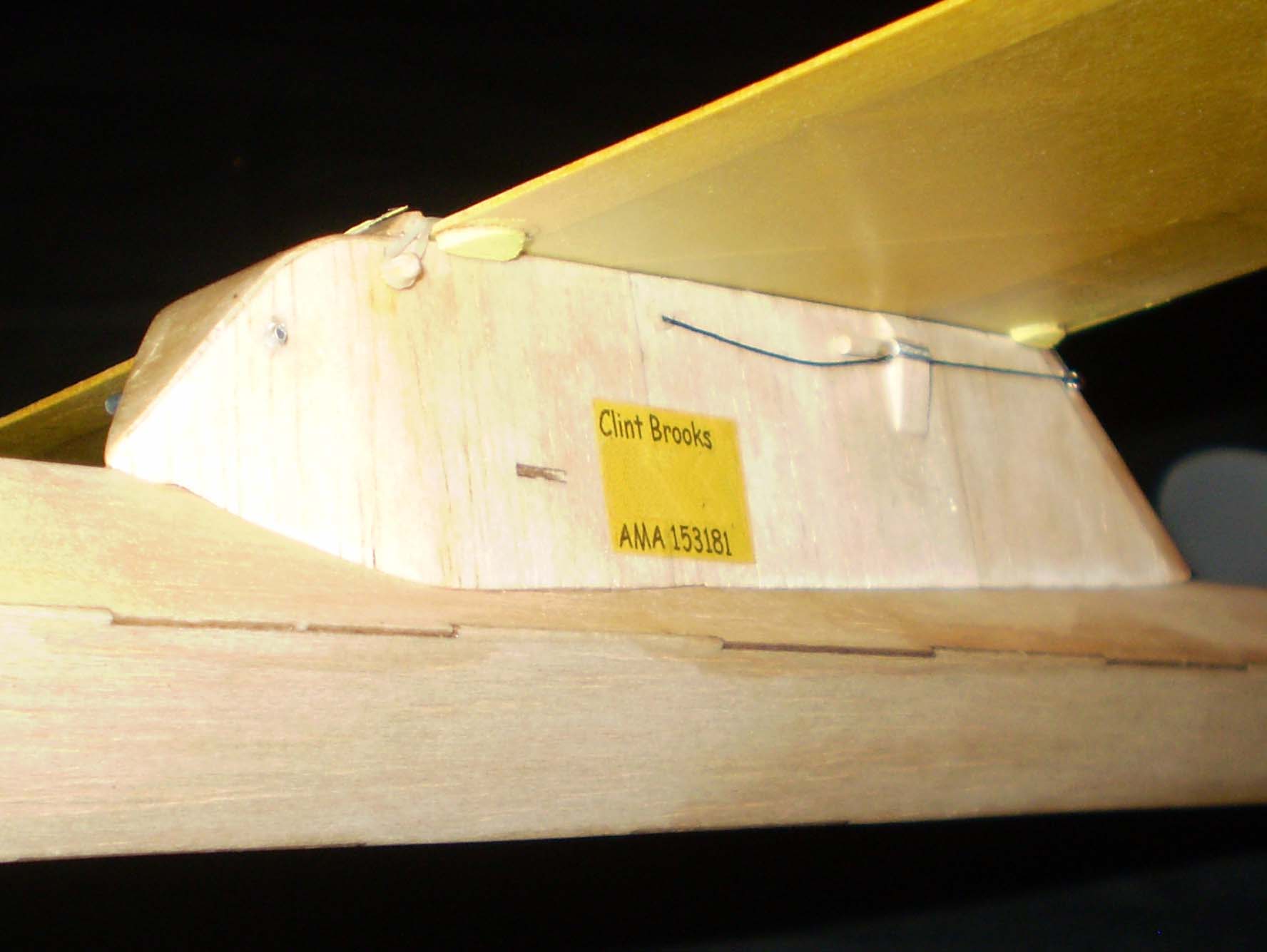

        Sheet balsa pylon assembly

        Lots of flat surfaces throughout make building and covering very easy

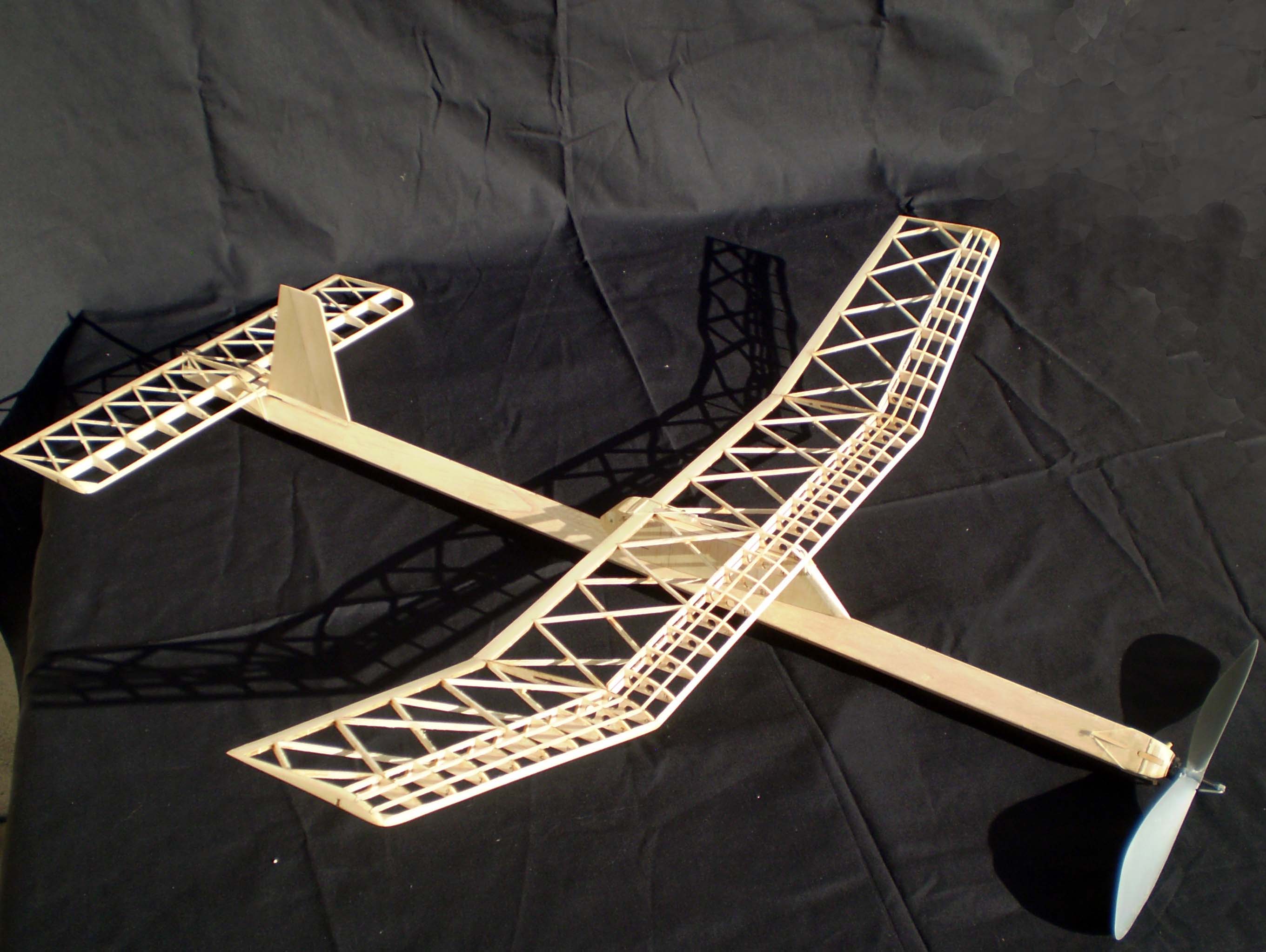

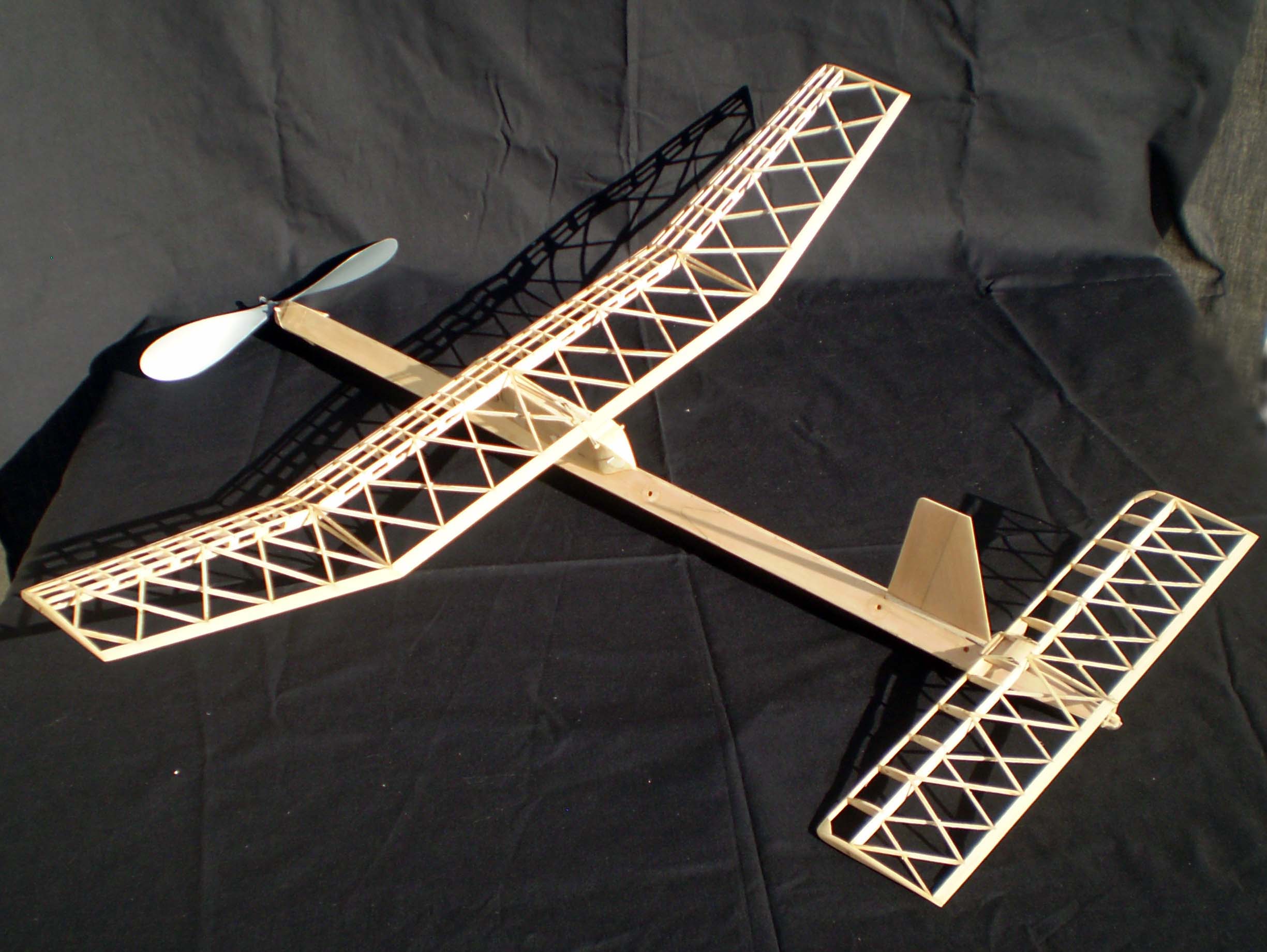

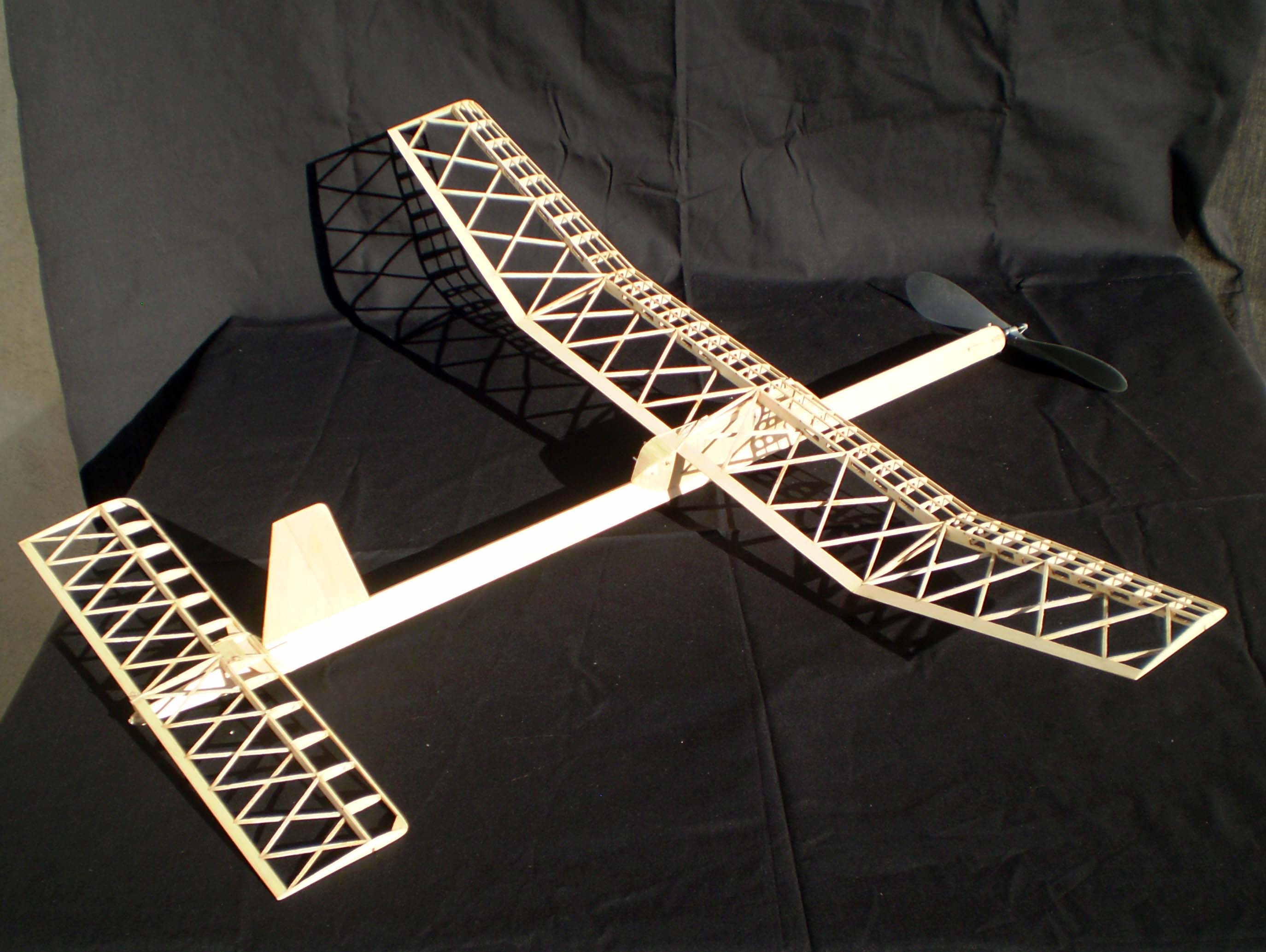

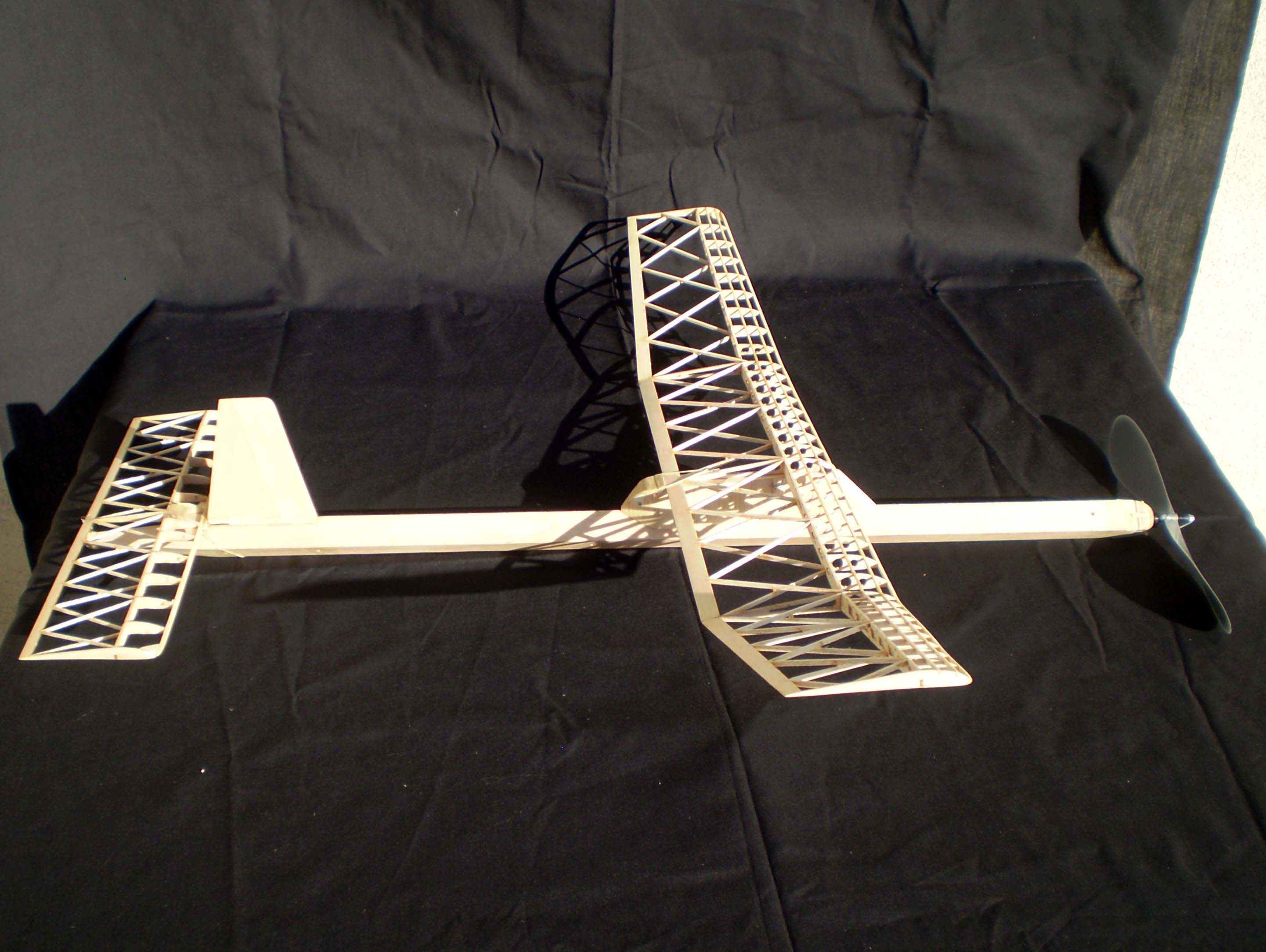

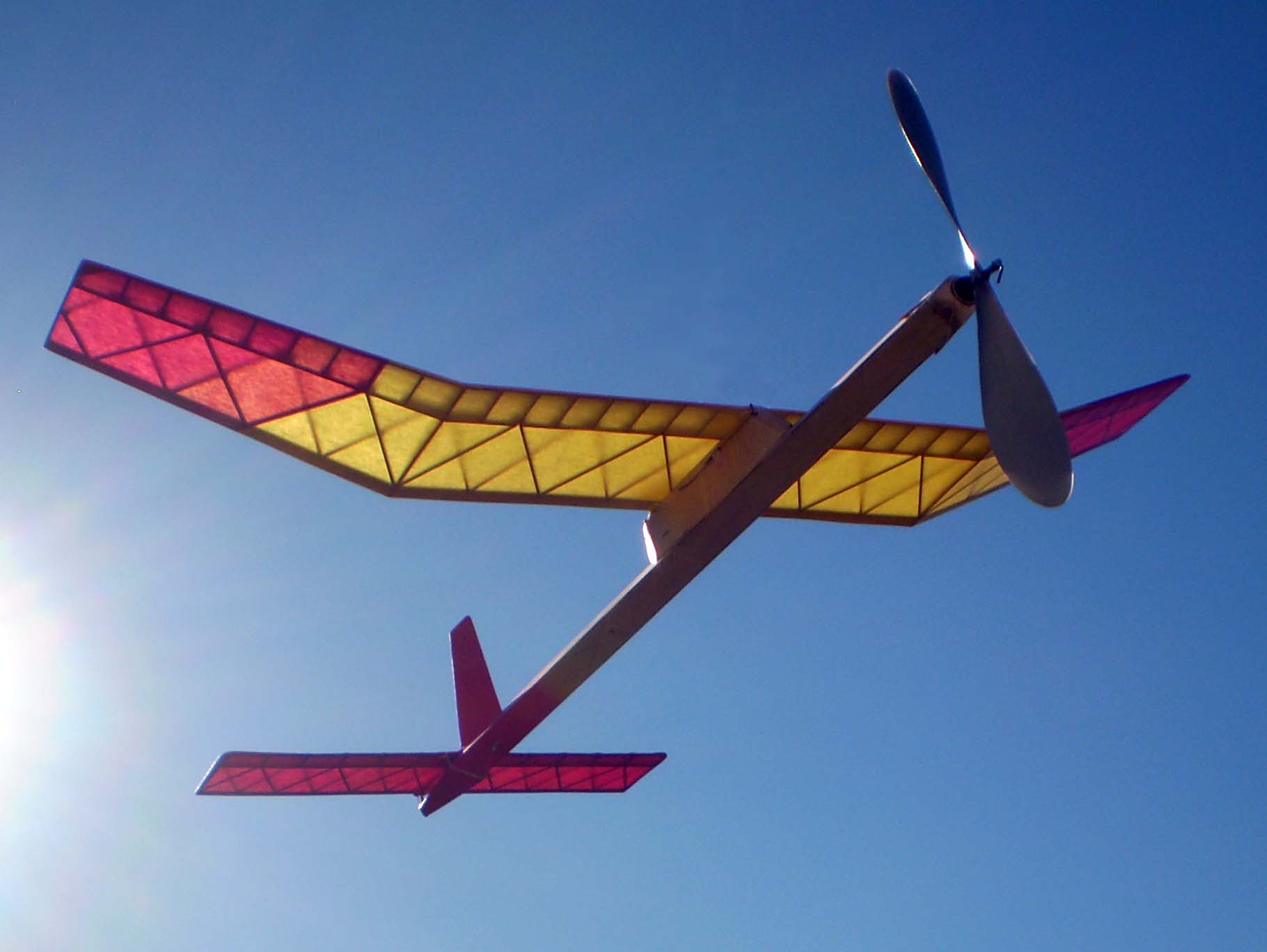

        Unique three panel wing construction that comprises an airfoil D section, full depth spars and a staggered truss aft wing box section that has built in wash-out in the tip panels

        Airfoils are flat bottom and flat top aft of the maximum camber of the  airfoil D section-covering is easy to apply and  aerodynamically smooth on all flying surfaces

        Airfoil section is 8.6% thick tapering to 7.9% at the tip-same as the Boomer

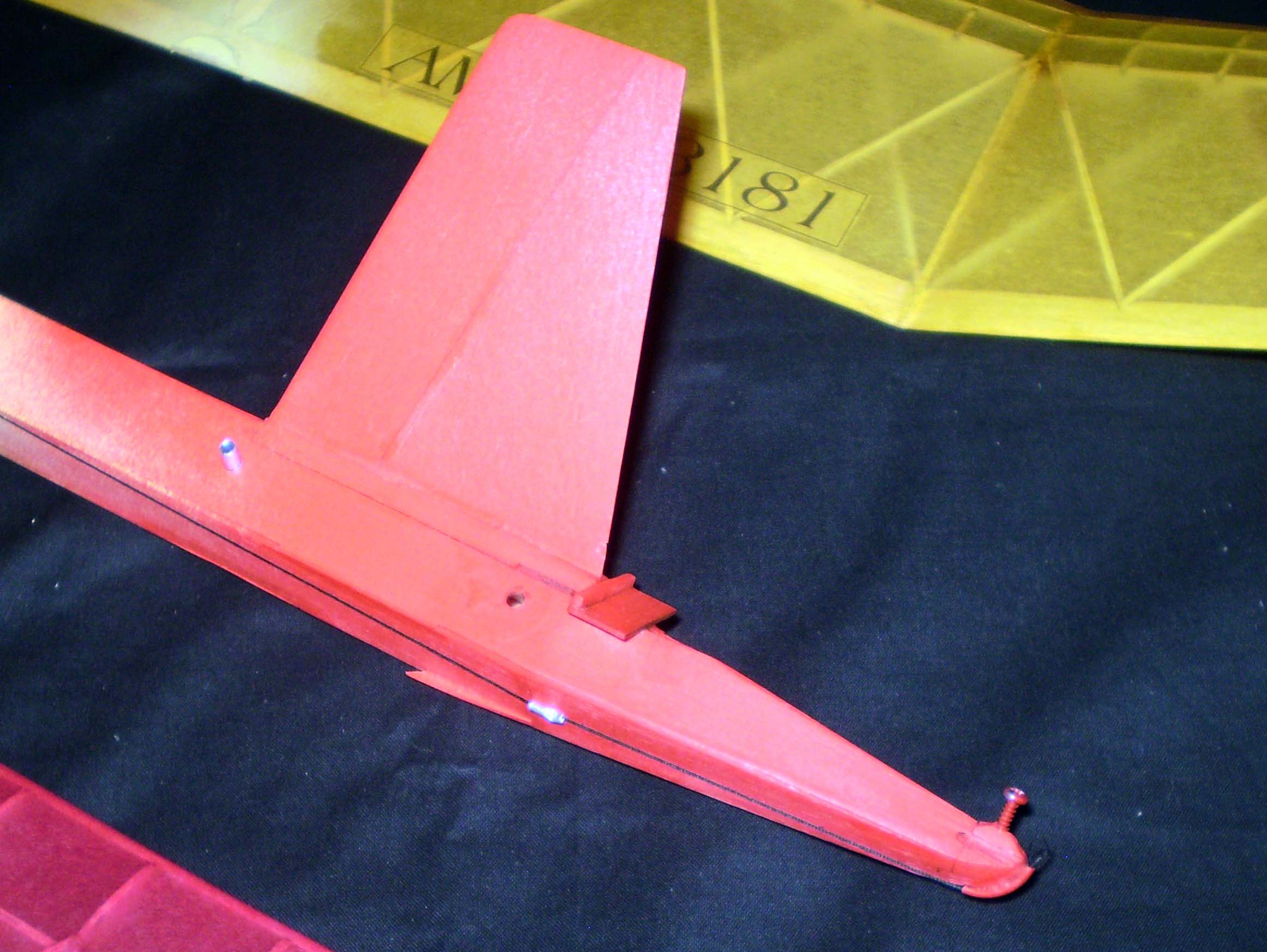

        Incidence adjustment screw for setting the horizontal stab position makes flight trimming simple and quick

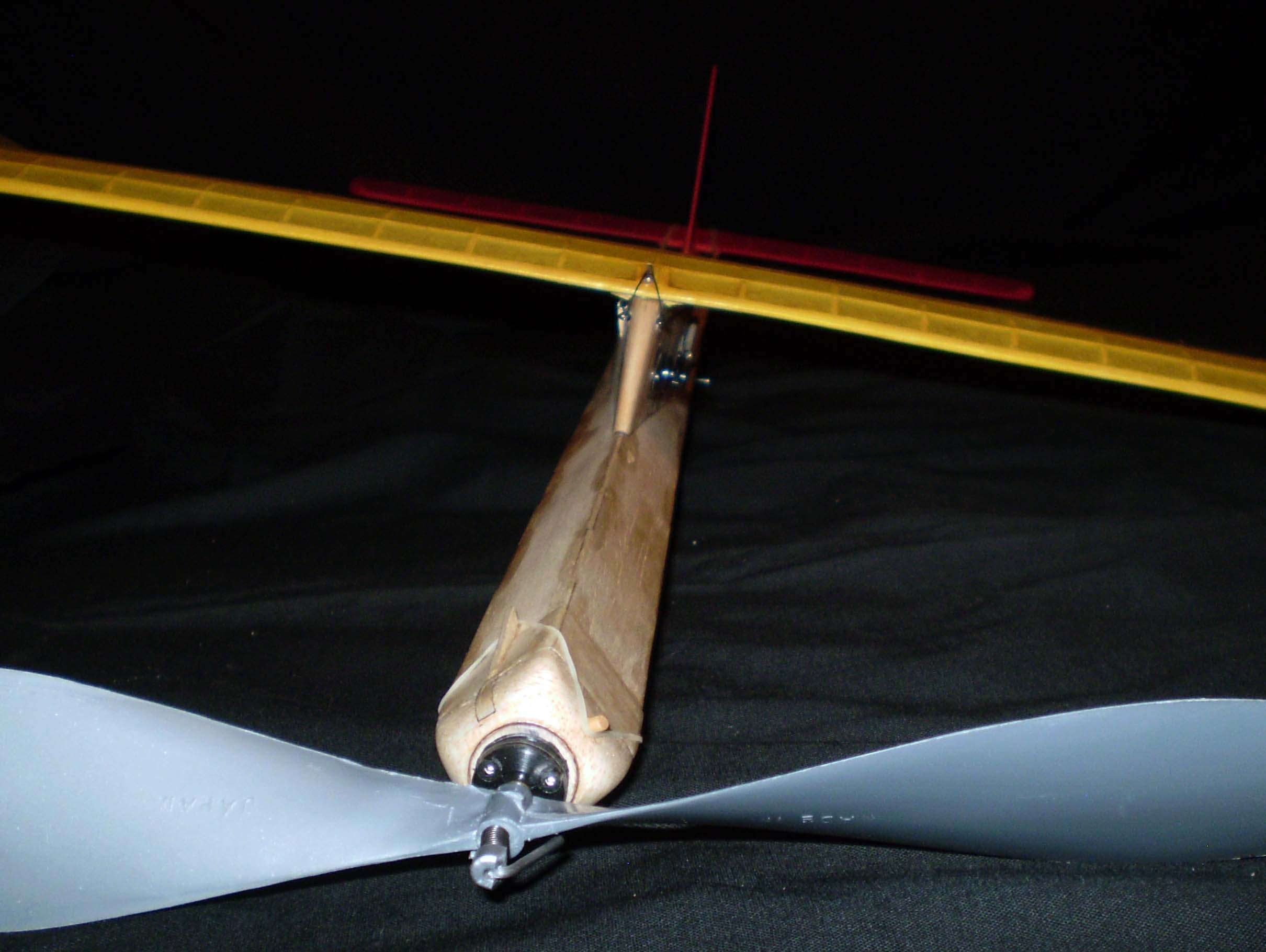

        Gizmogeezer Precision Freewheeler makes thrust adjustments easy for power trim settings and is state of the art for P-30 competition

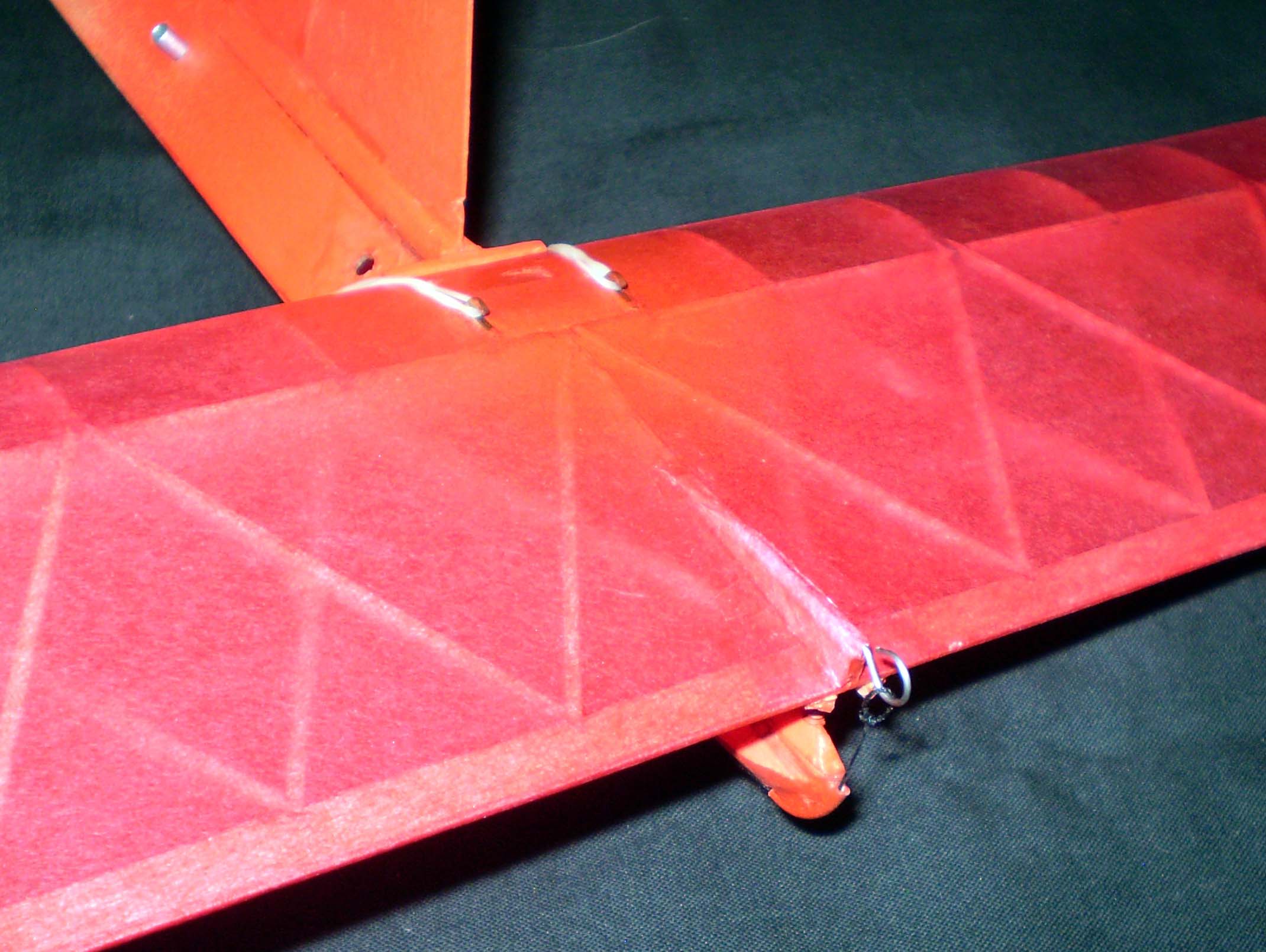

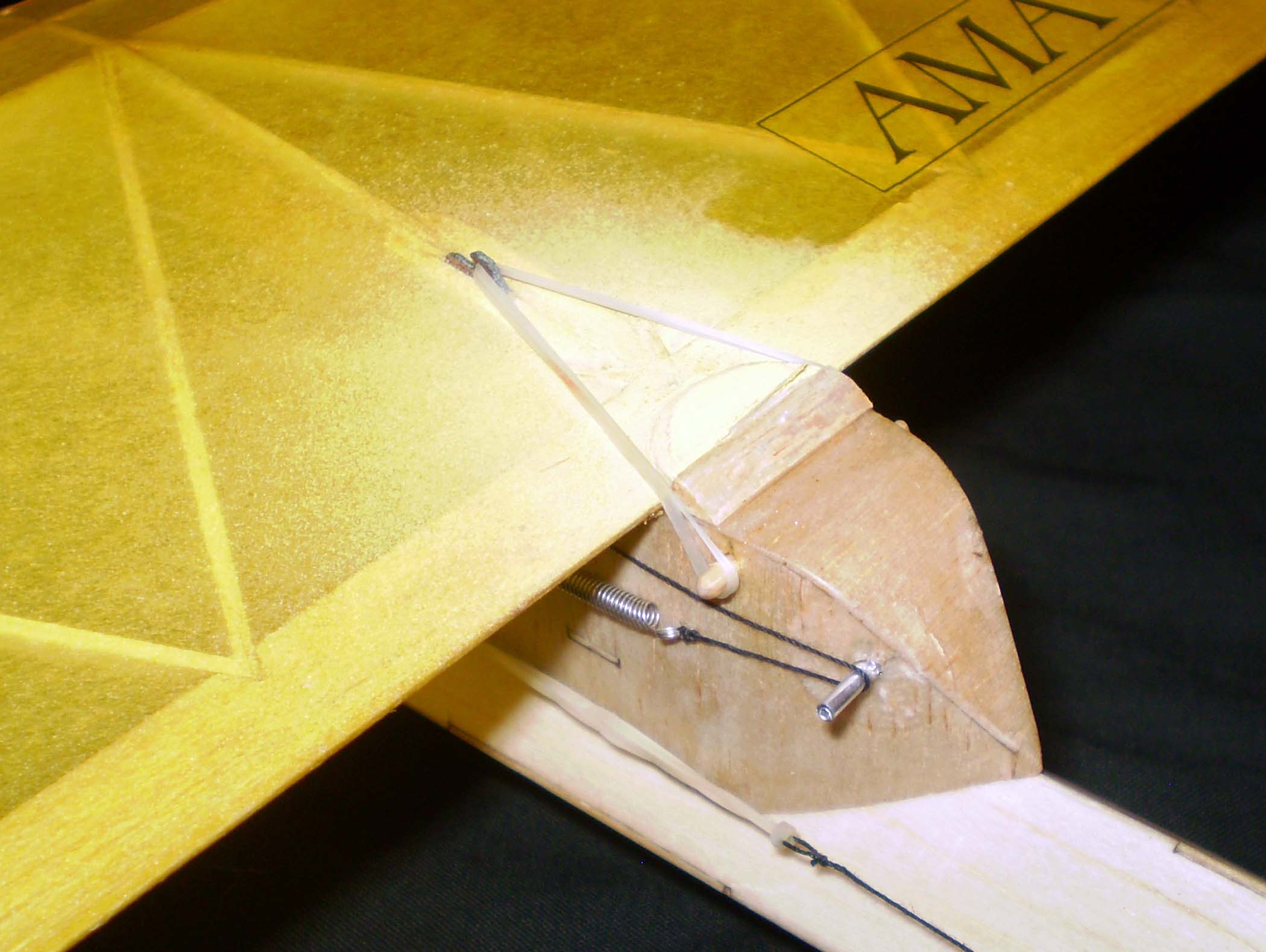

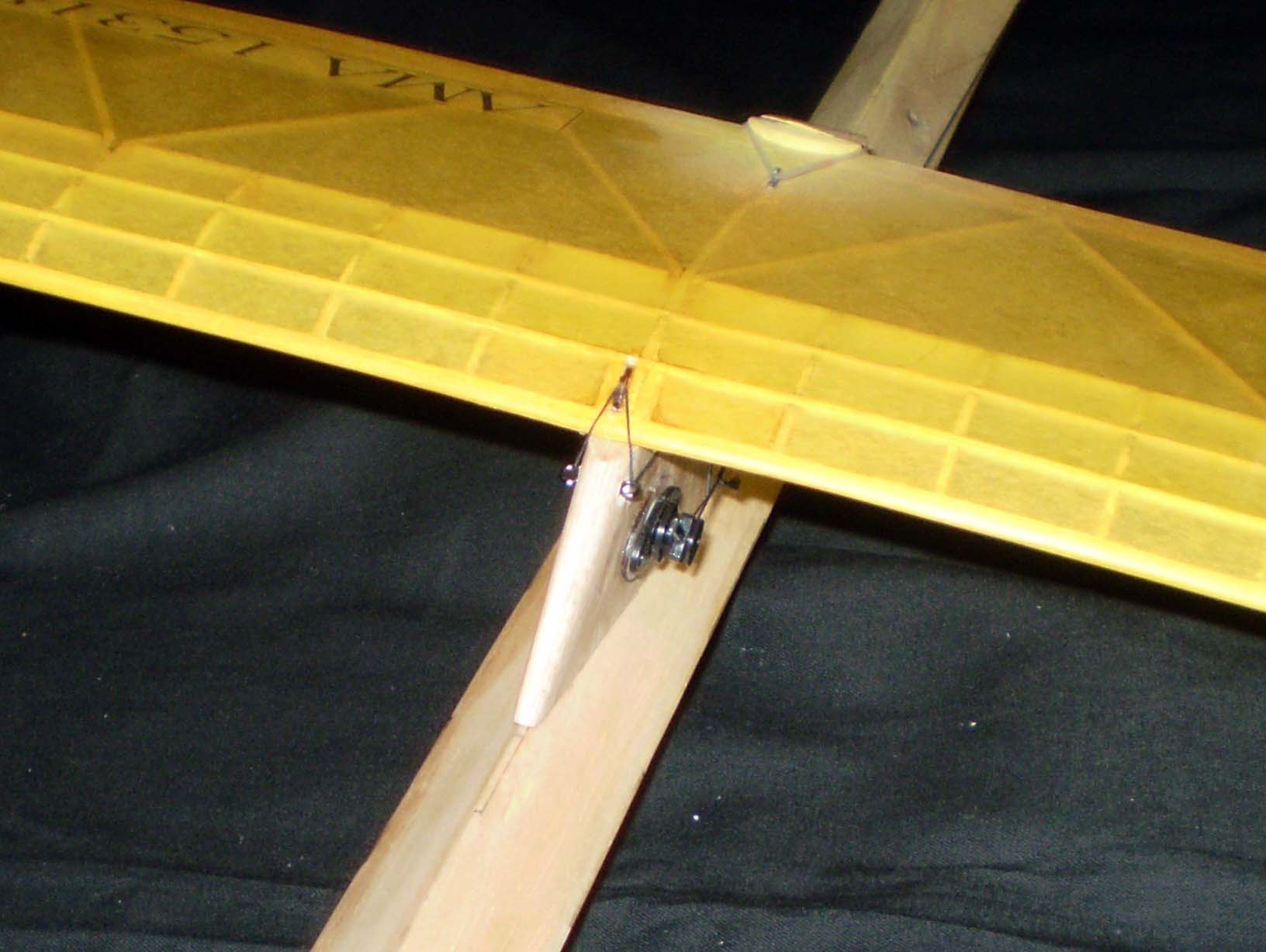

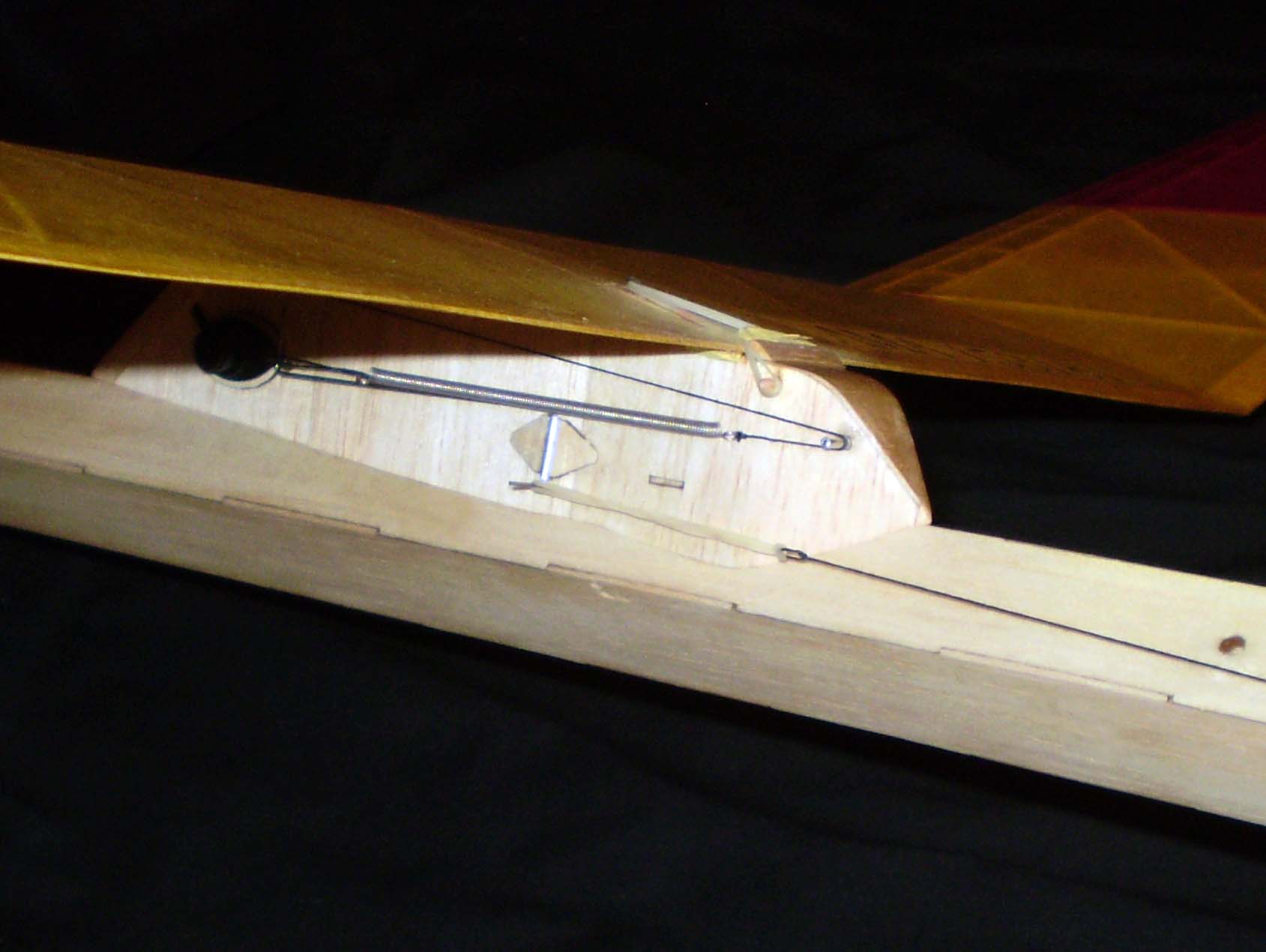

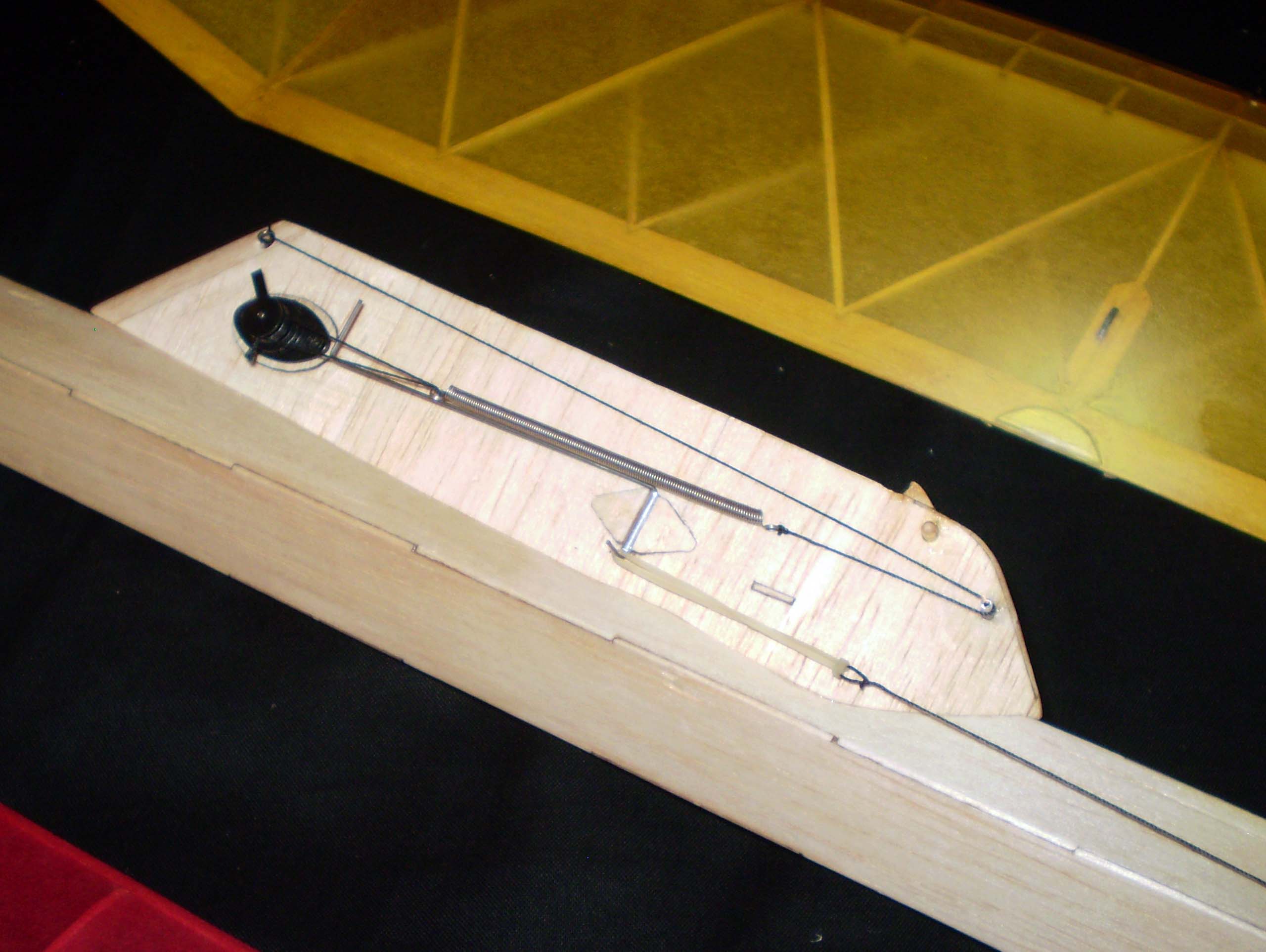

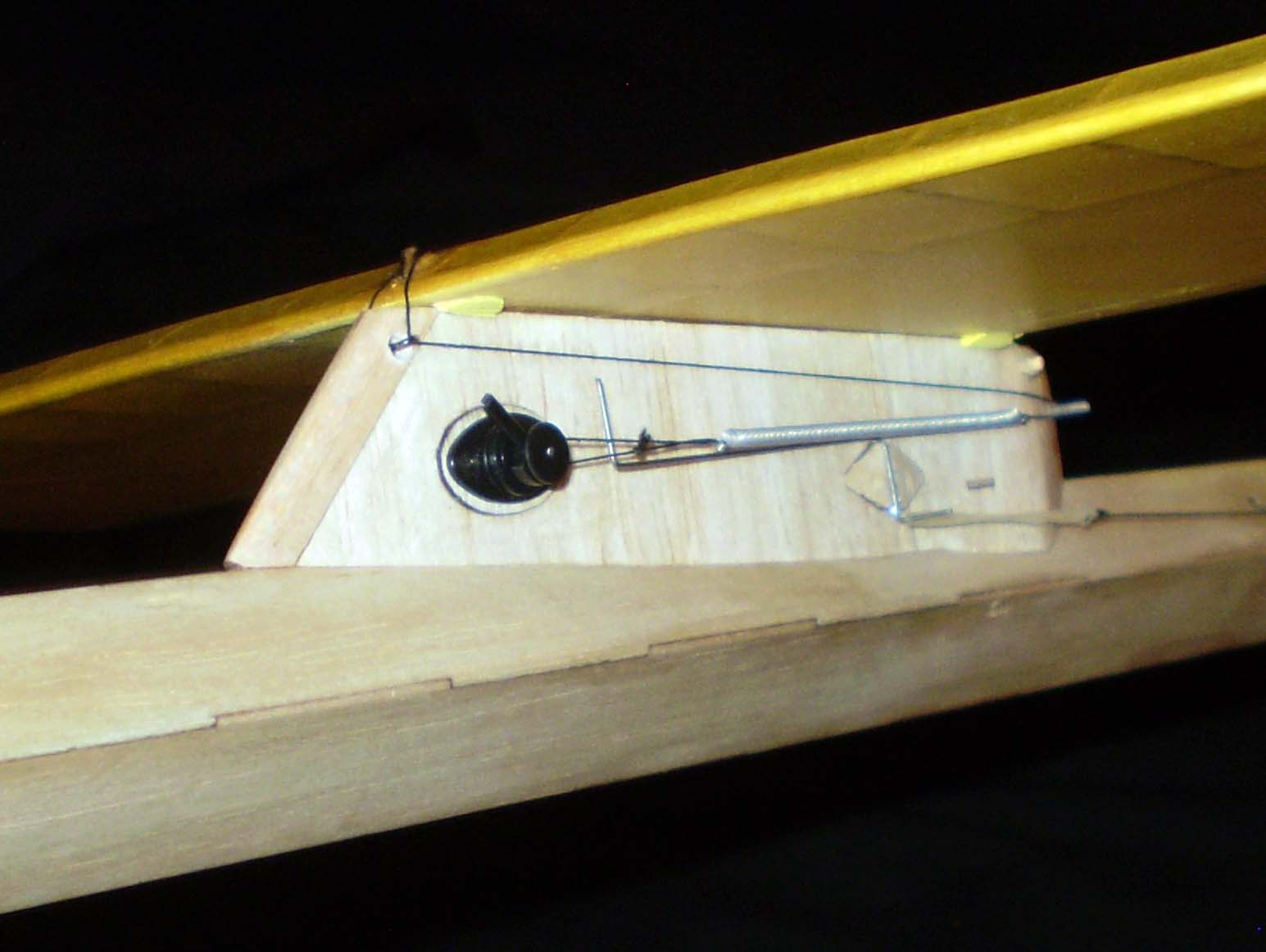

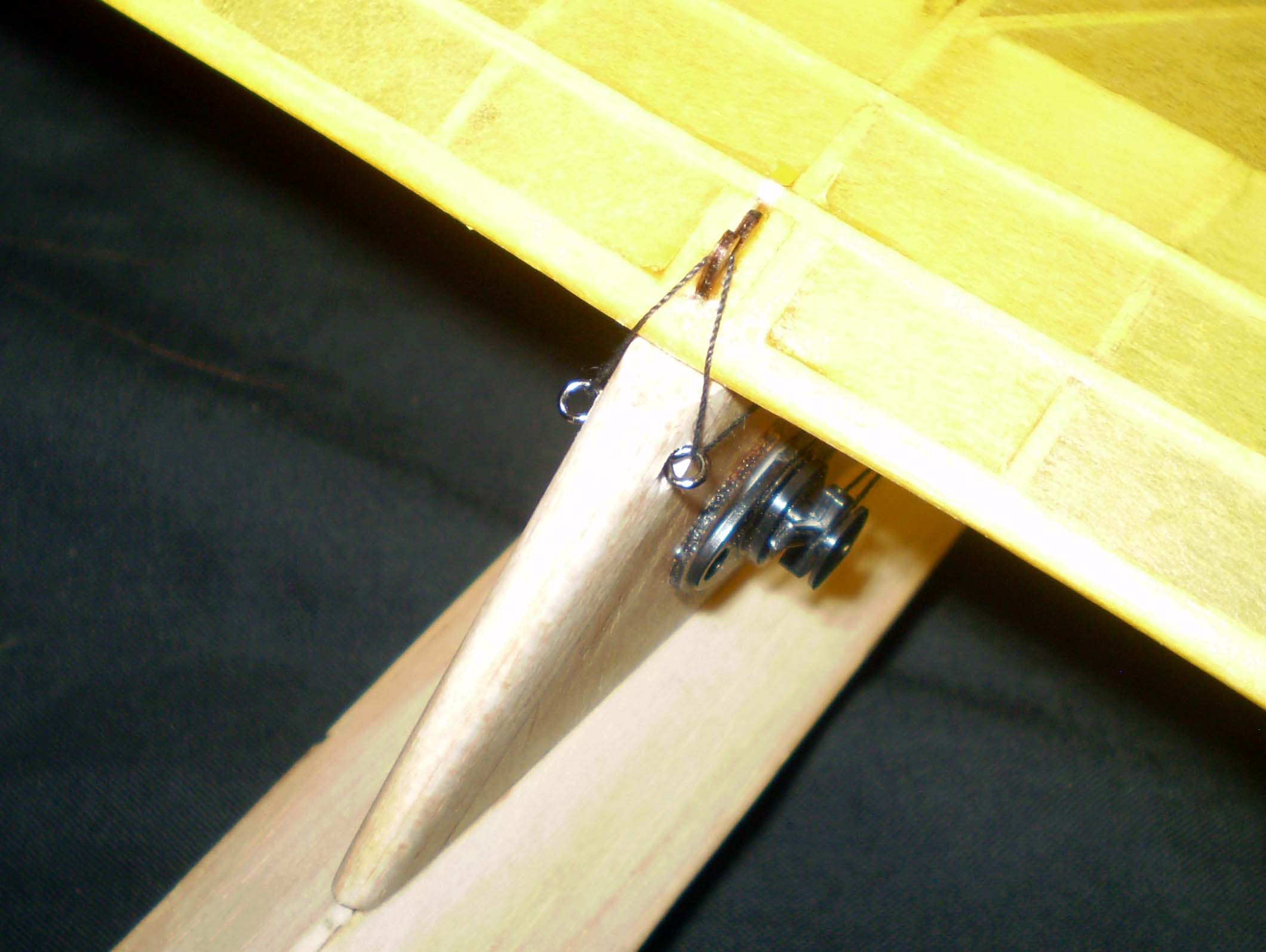

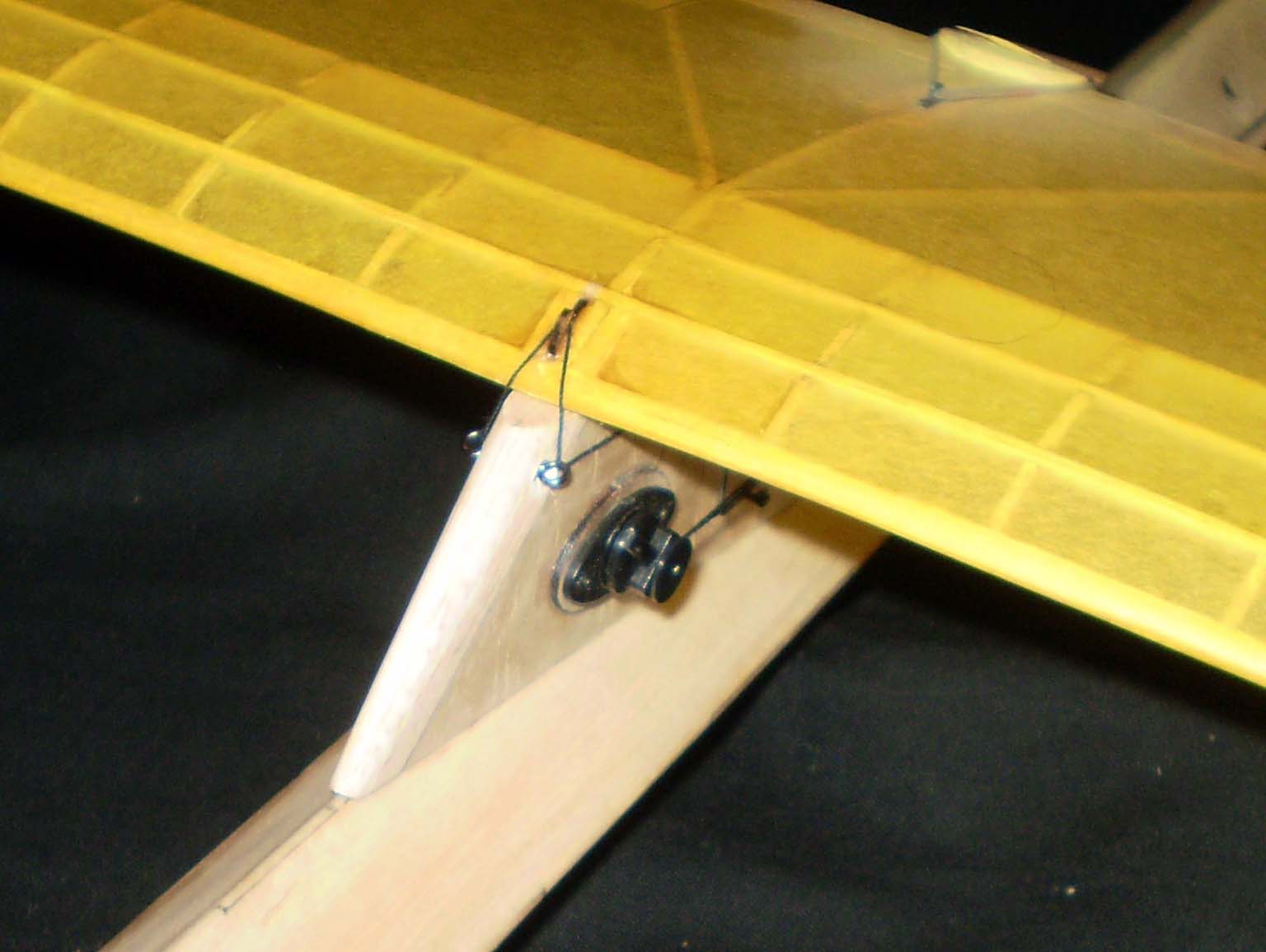

        Reliable wing and stabilizer pop-up dethermalizer system is designed into the model-no after sale engineering is required to complete this model to a contest ready standard; all features have been completely proven over years of contest flying

        Nominal weight of model if built per design and Esaki covering used is 45 grams; minimum allowable contest weight is 40 grams

        Excellent loitering glide characteristic for maximum contest performance

Specifications:

Wingspan: 30 inches projected
Wing Area: 125.4 square inches
Nominal fuselage length 28.2 inches
Max motor tube length (nose to peg) 24.4 inches
Minimum motor tube length 14.9 inches
Nominal weight 45 grams without motor


MONARCH - Construction Manual  (304 KB PDF file)
A printed copy of this Construction Manual is included with each kit

MONARCH - Construction Detail - Part 1  (~ 8 MB PDF file)
MONARCH - Construction Detail - Part 2   (~ 6 MB PDF file)
These Construction Detail files are available online only.
They are suitable for viewing online, or if you like, they can be printed out

Sample of MONARCH CAD drawn plans  (coming soon)



MONARCH Full Kit MONARCH Short Kit

  $93

  $45

Short Kit includes: laser parts (includes fuselage & pylon parts), CAD drawing and printed Construction Manual. You provide your own balsa strip wood, tissue covering , hardware, timer and prop.

  • Domestic Shipping and Handling charges are based on the costs of shipping our full our partial kits from our west coast facility to the far east coast of the United States. Currently a single full or short kit ships for $12, 2 ship for $17 and 3 for $23.

  • If the actual Shipping and Handling costs to your location are less than what was collected during the PayPal checkout process by $2 or more, a refund will be issued to you PayPal account for the excess shipping costs.

  • Please email us  for an estimate of shipping and handling charges for quantities of kits in excess of 3.

  • sales tax for California residents is 9.25%

  • Please email us to inquire about international shipping and handling charges

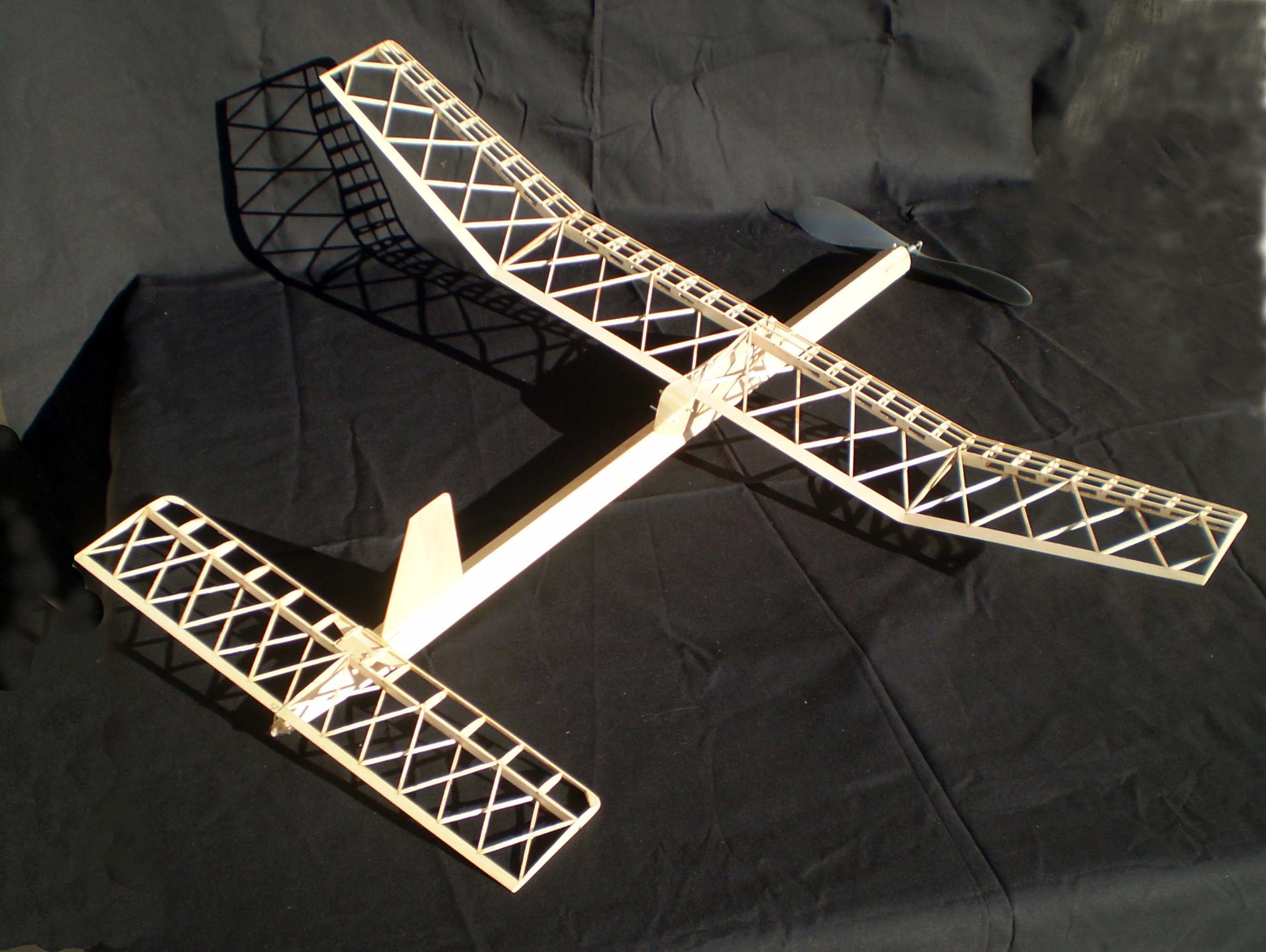

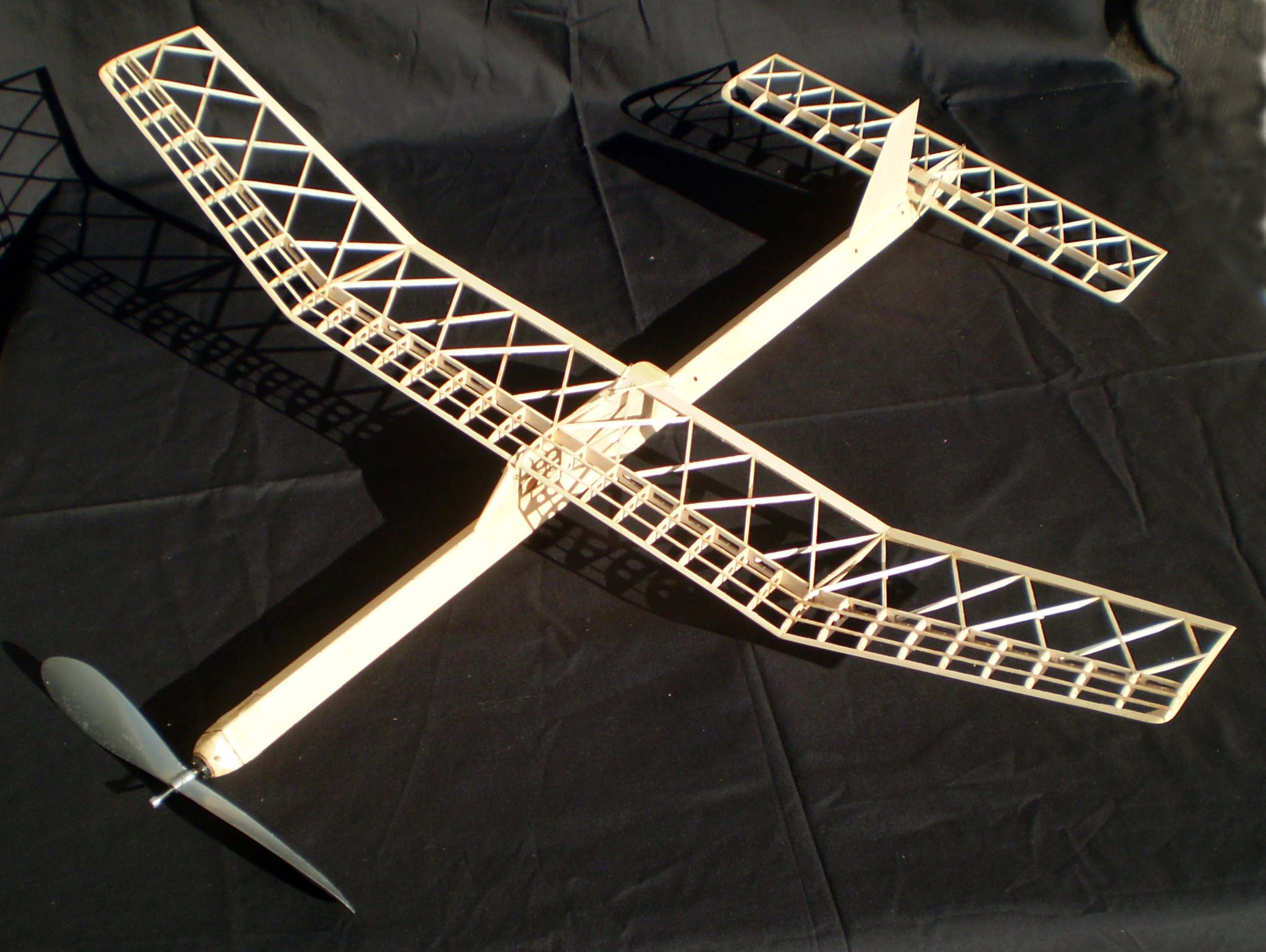

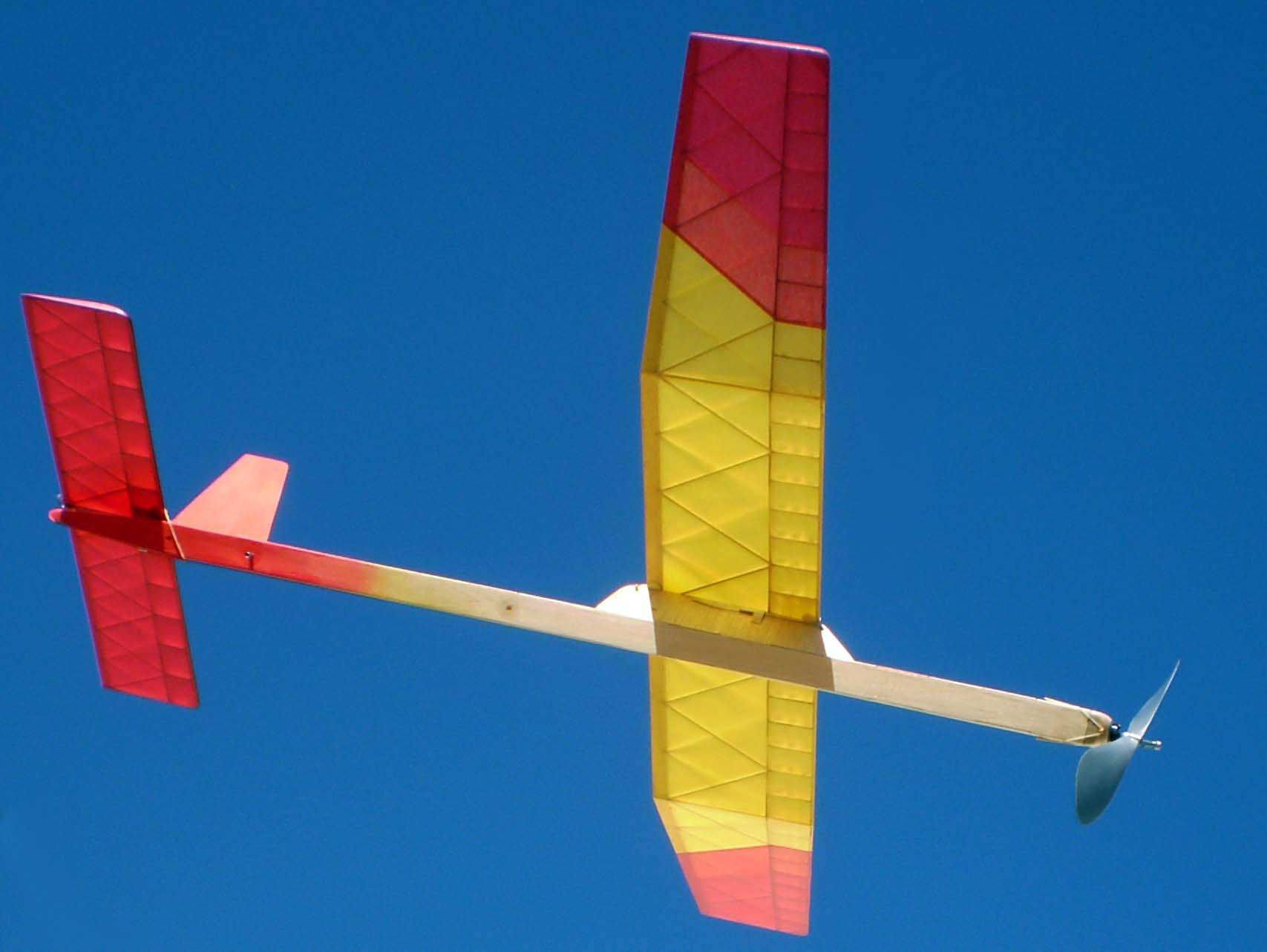

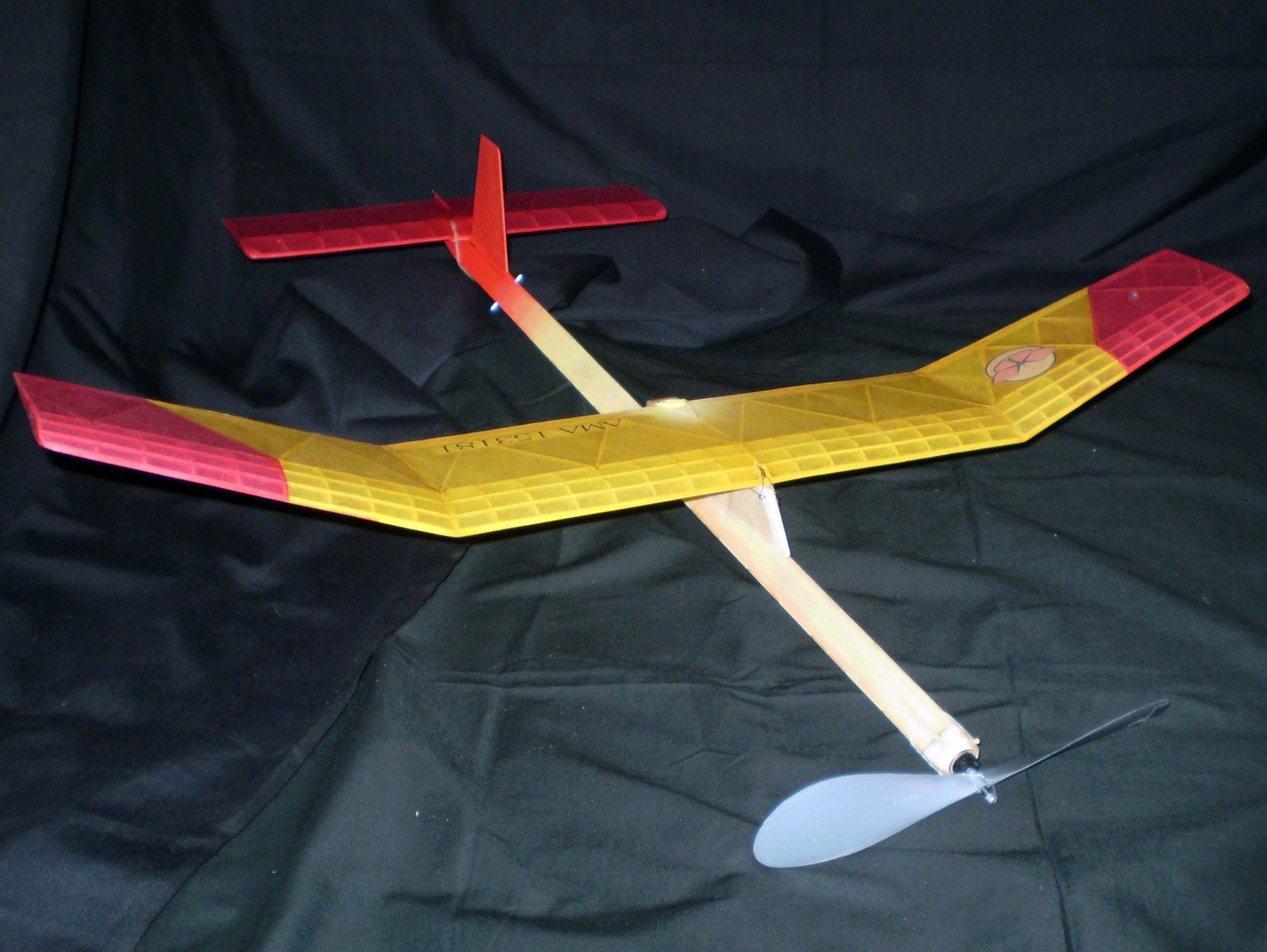

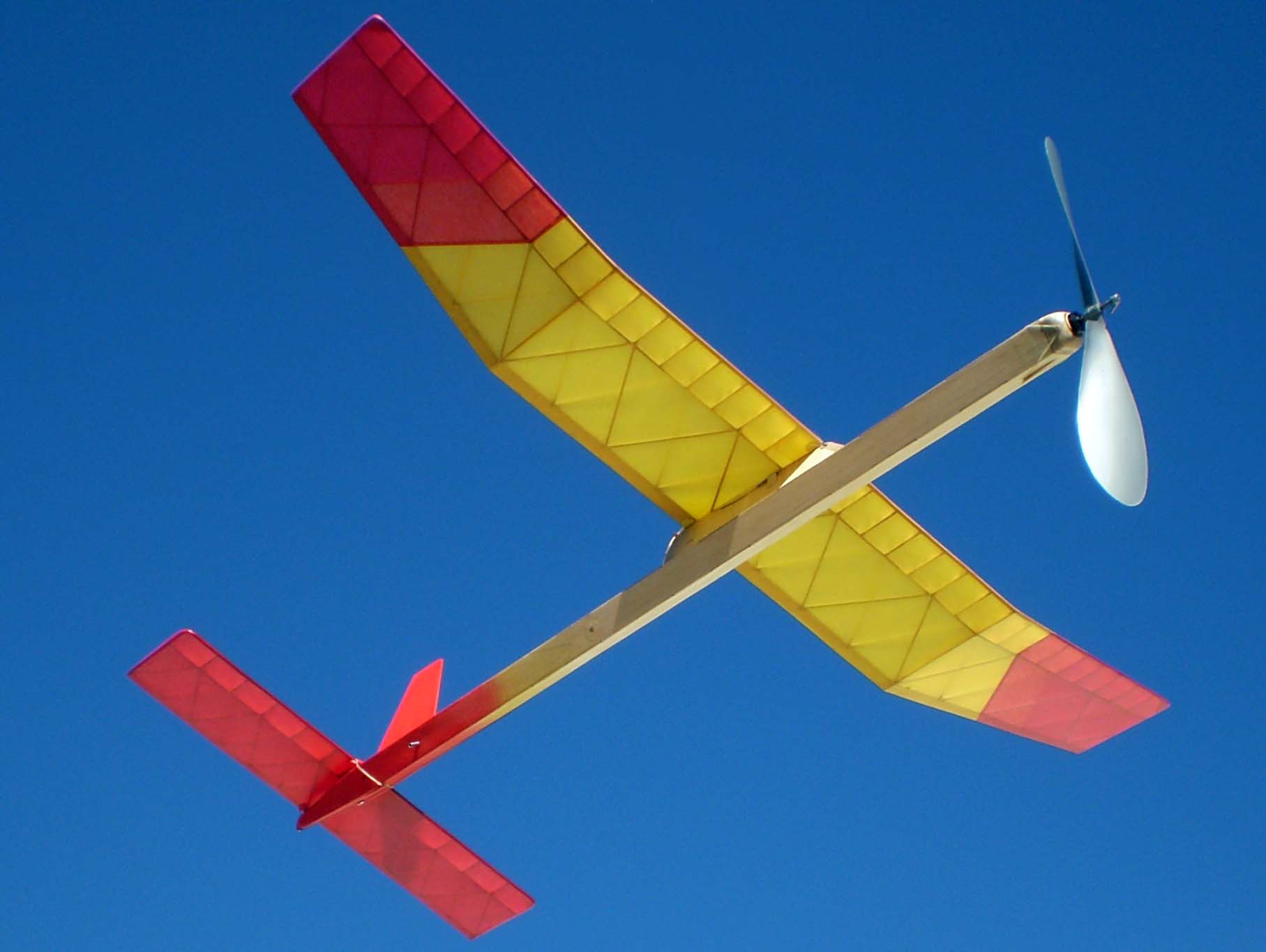

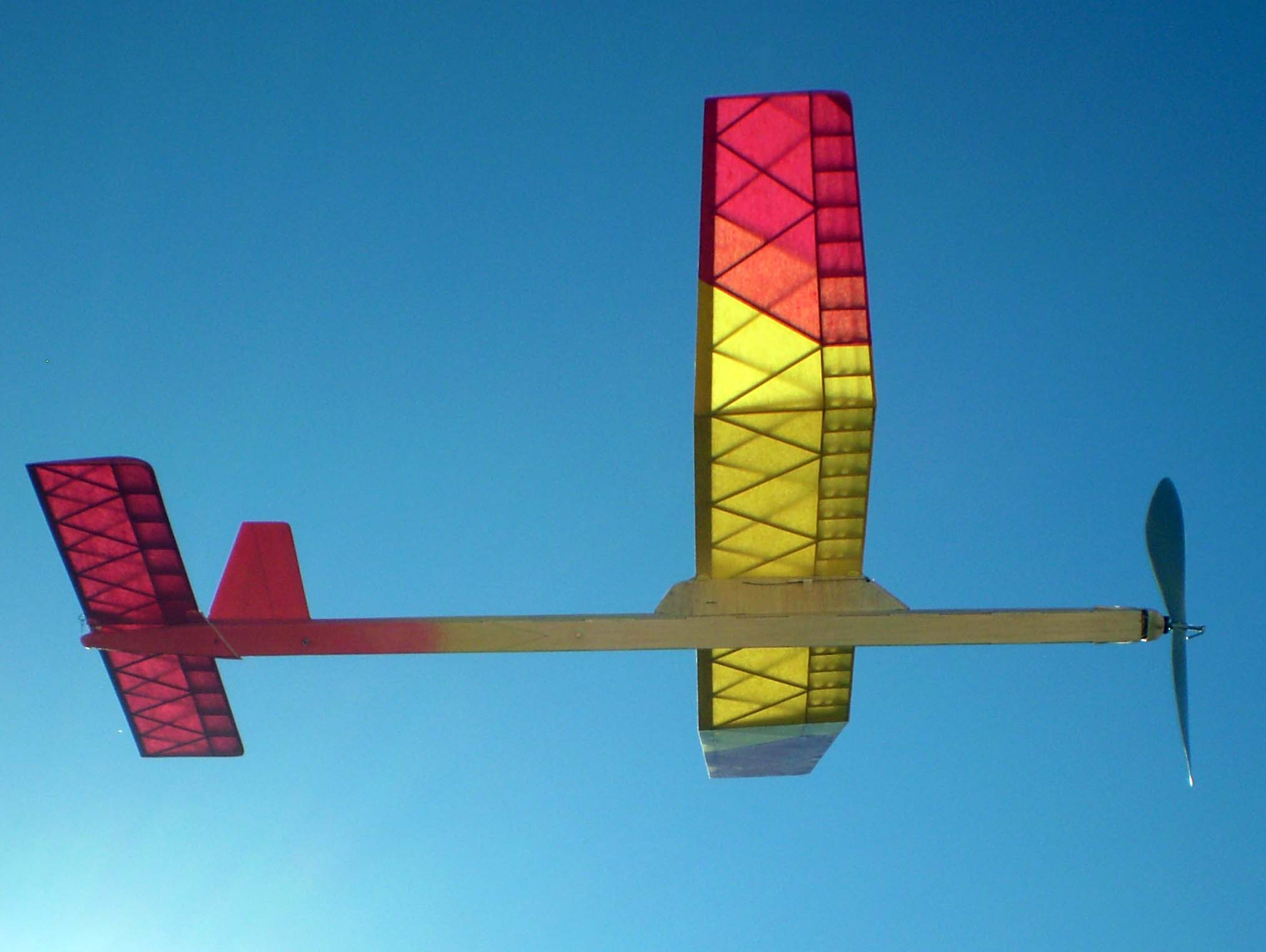

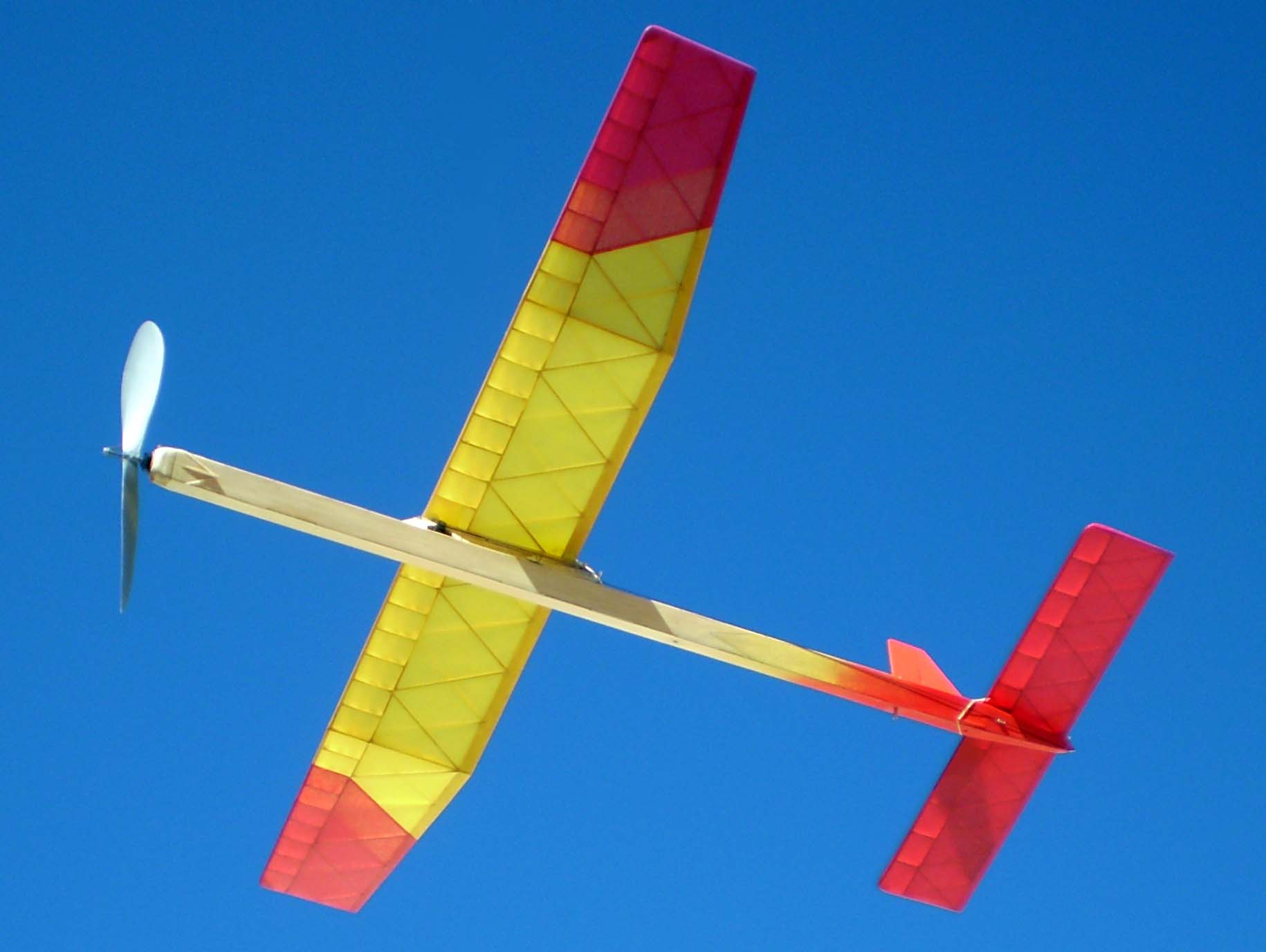

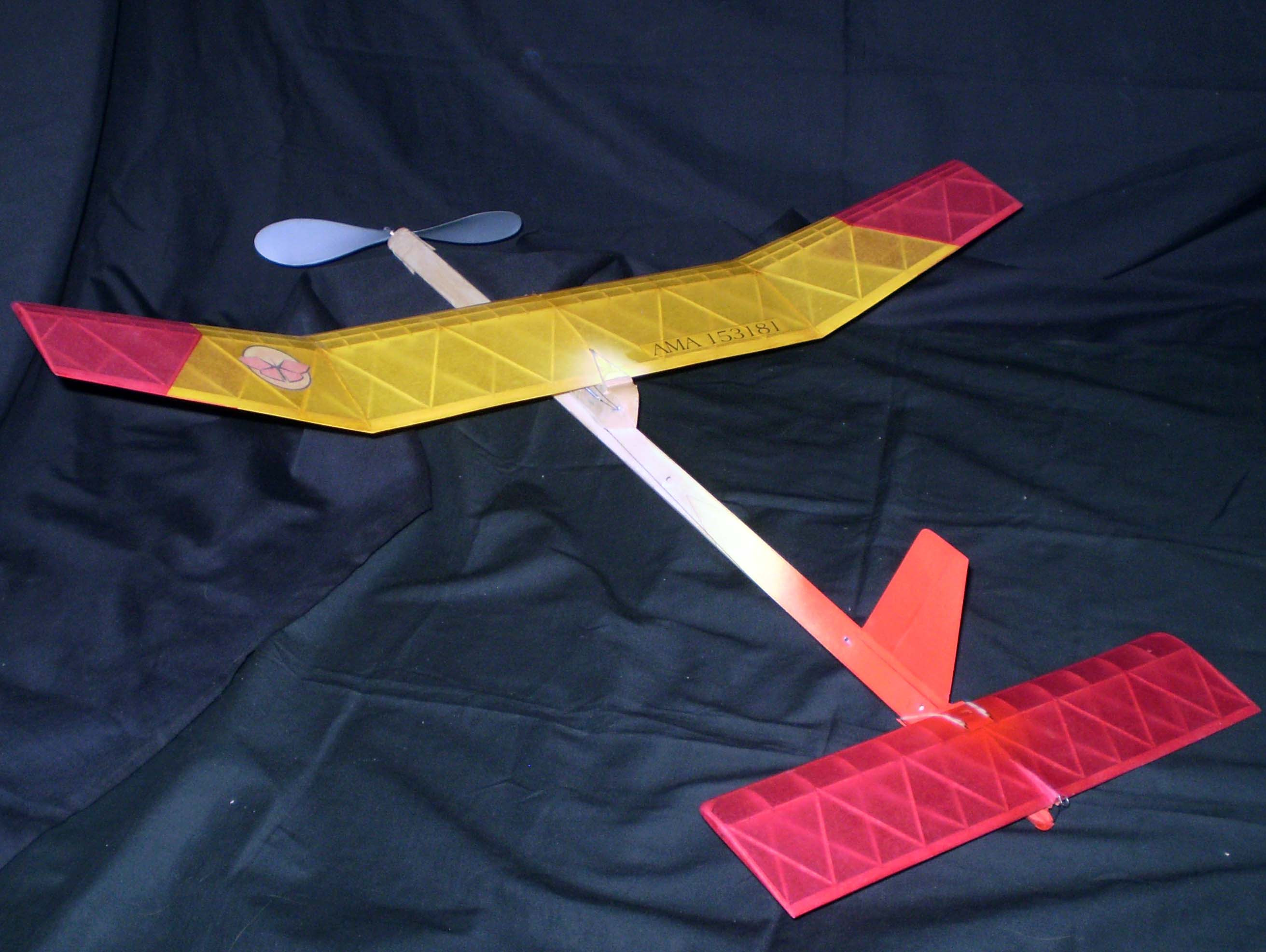

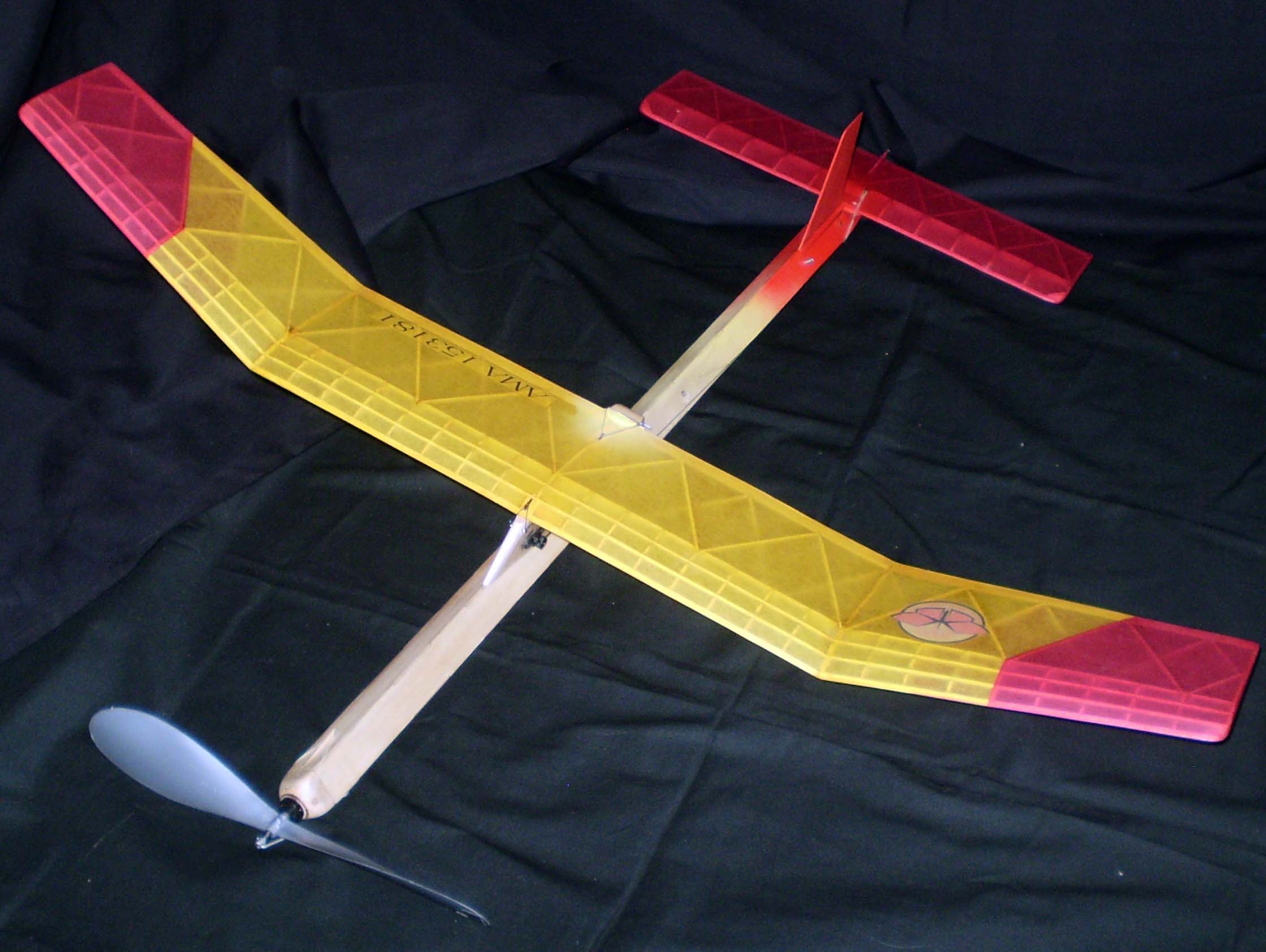

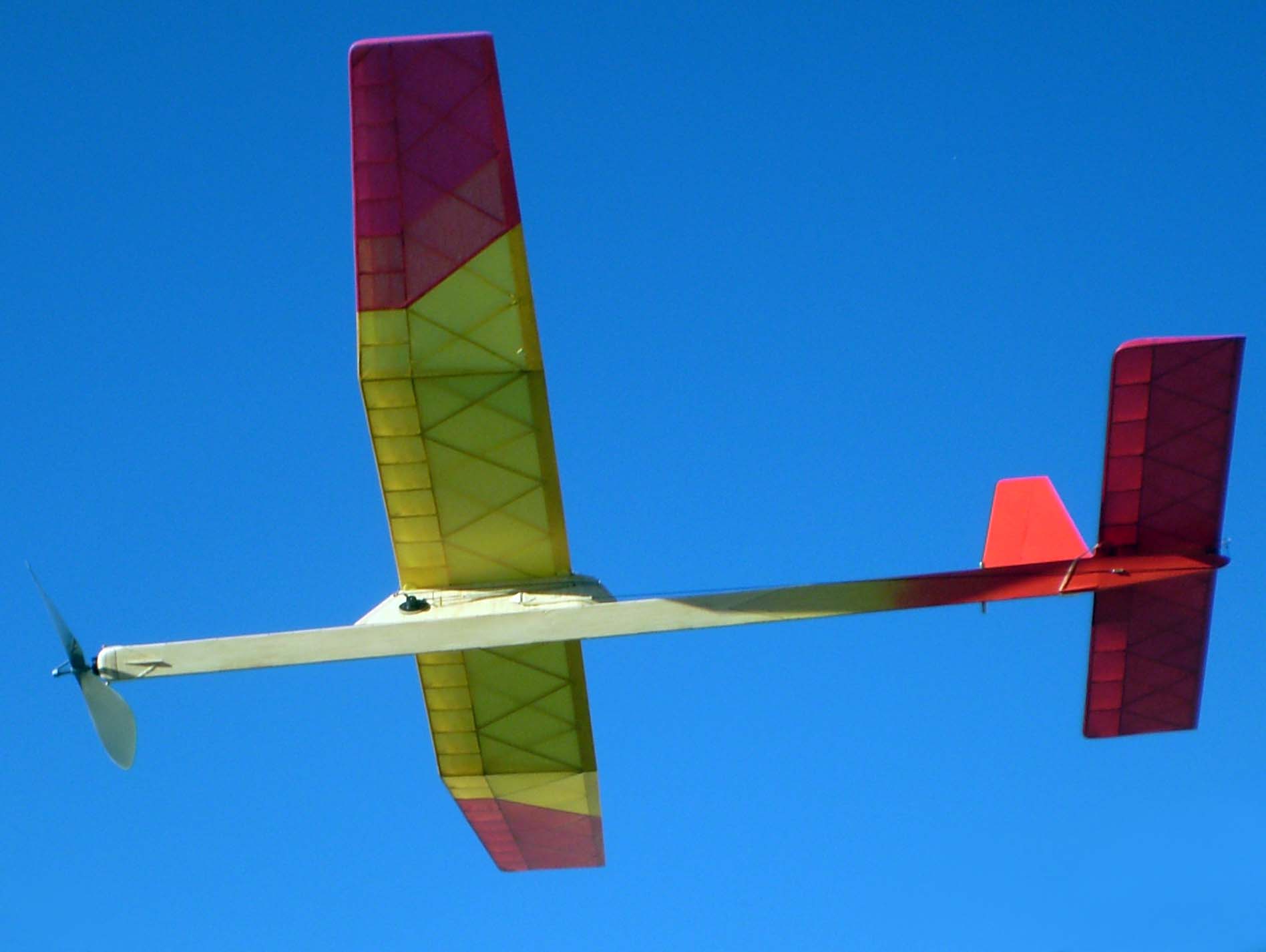

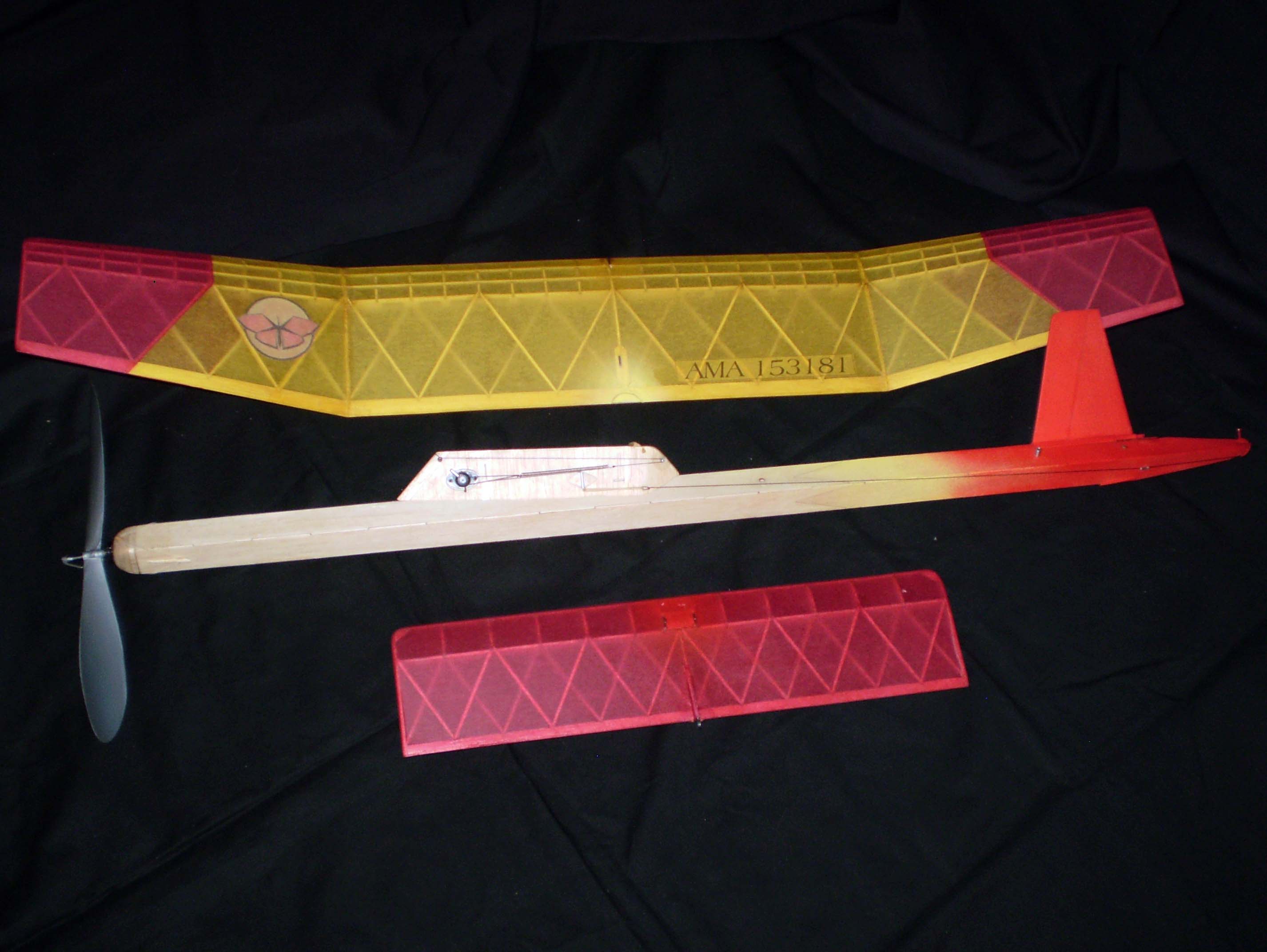

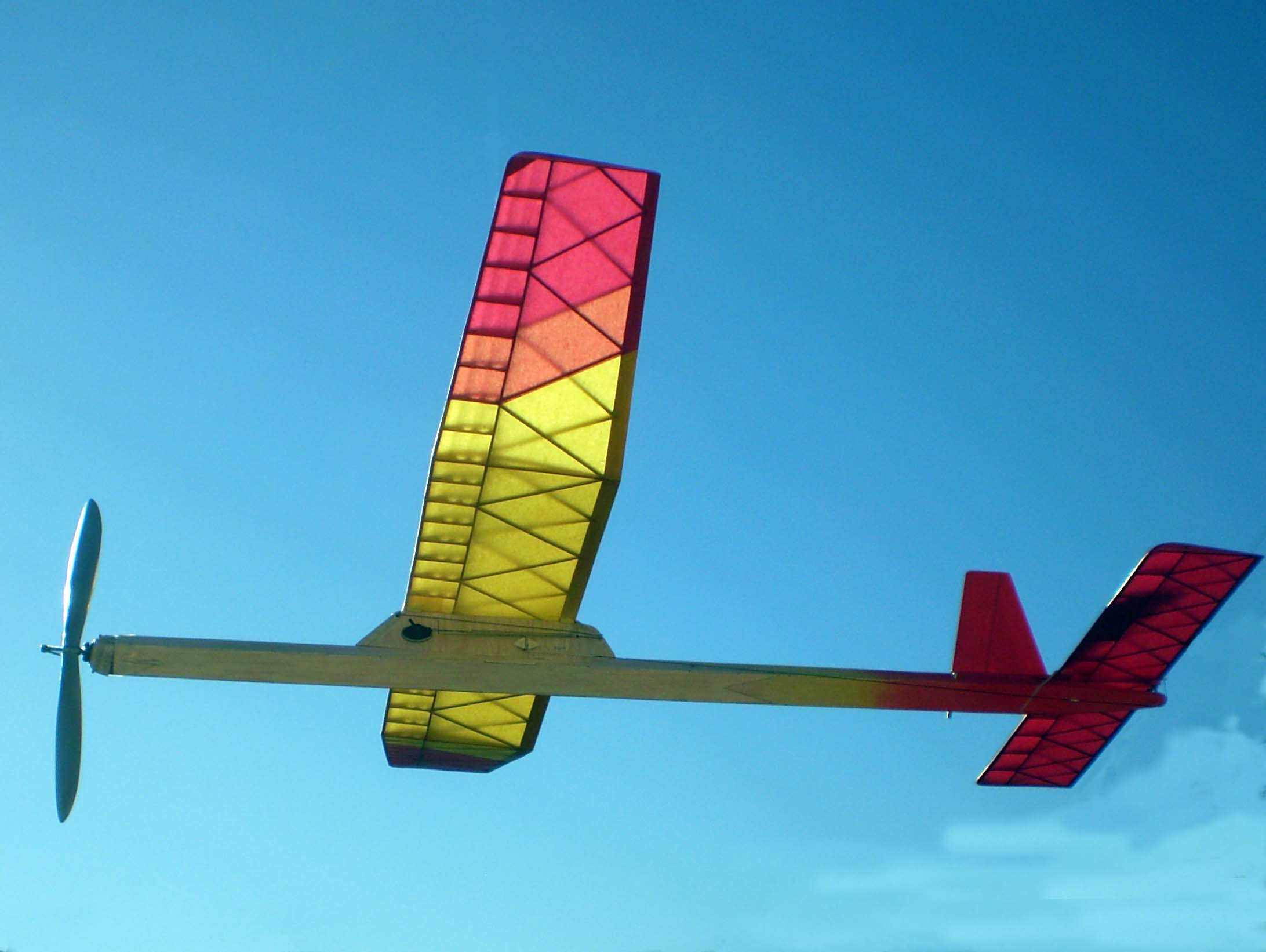

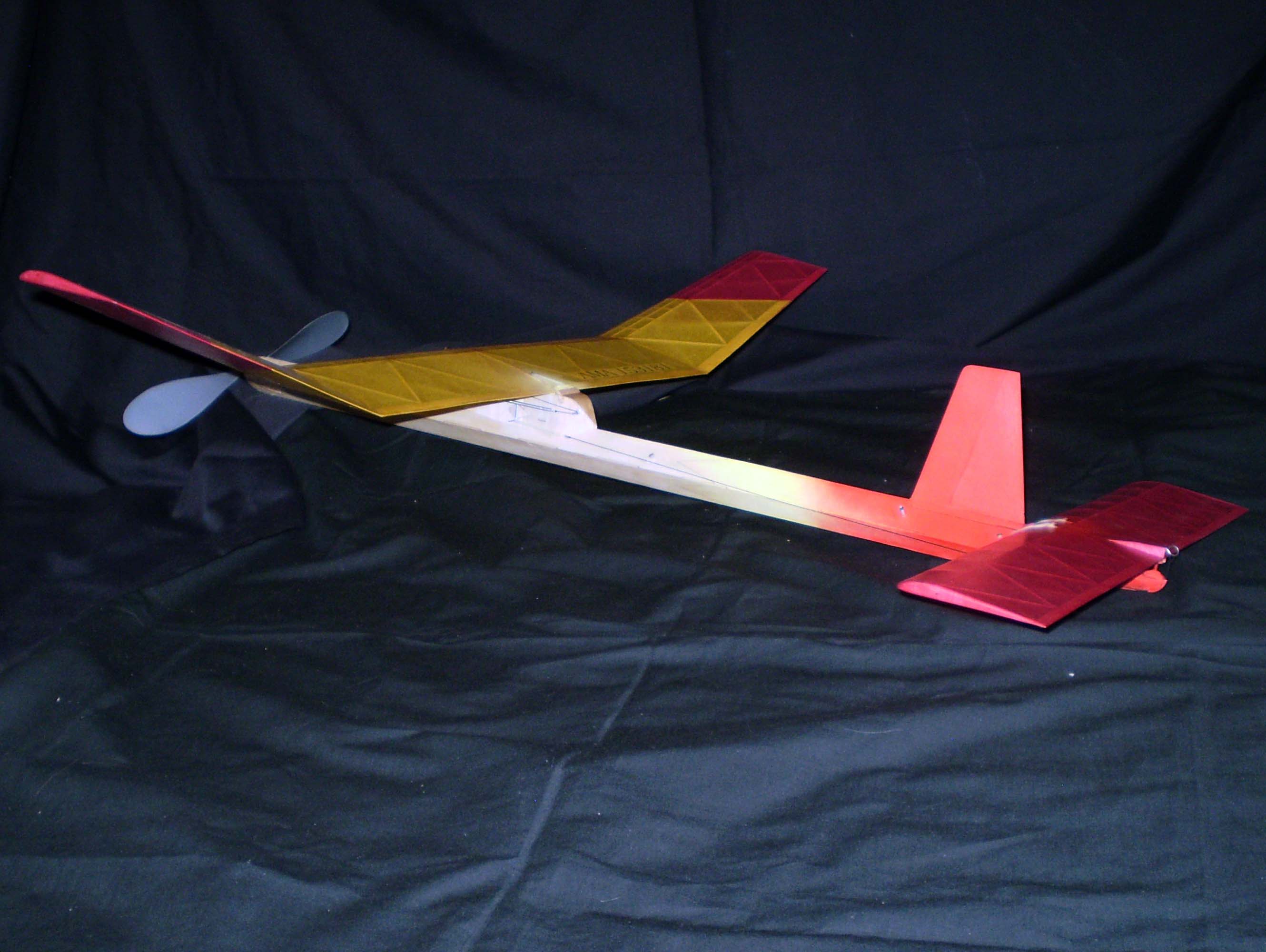

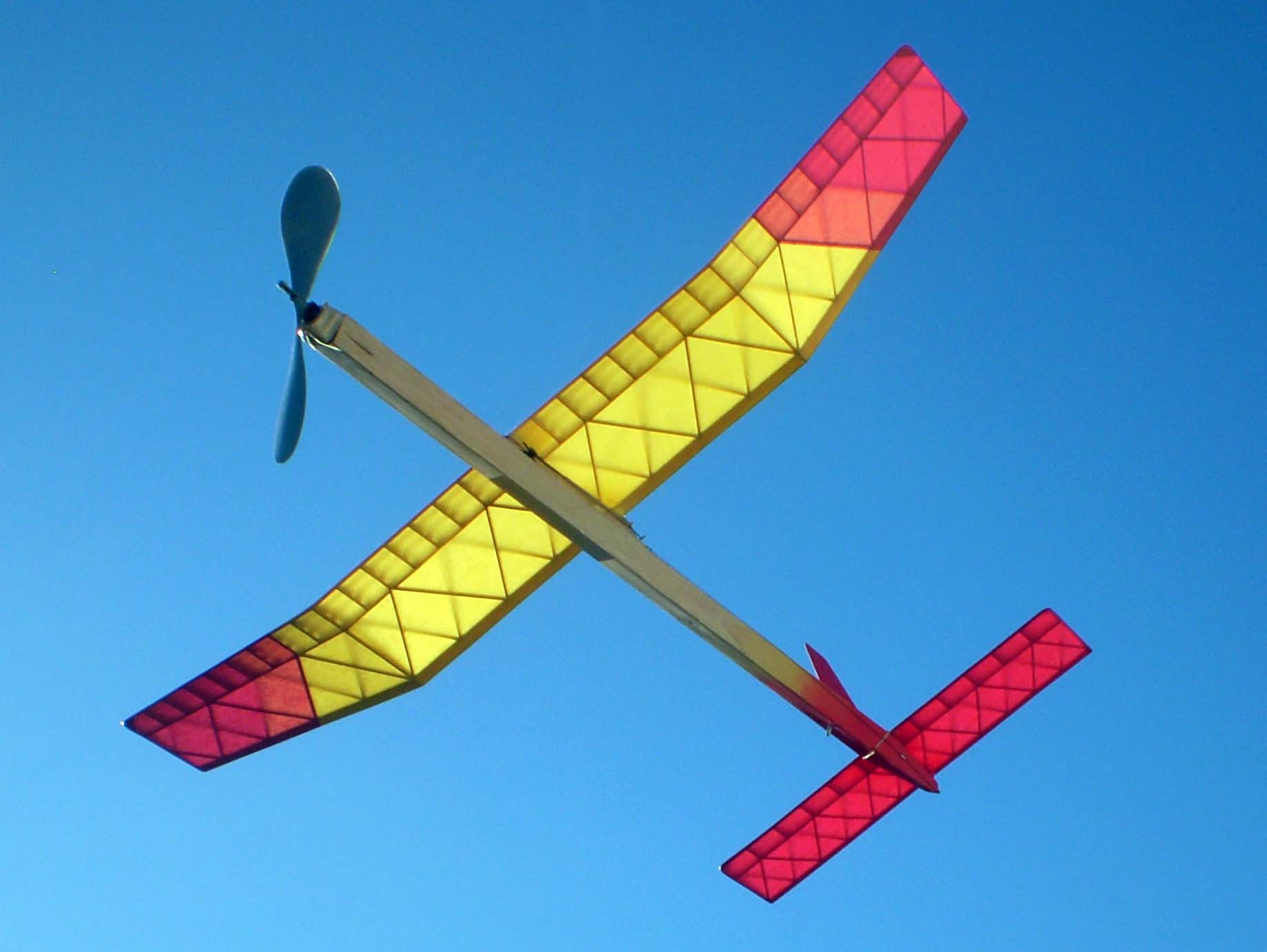

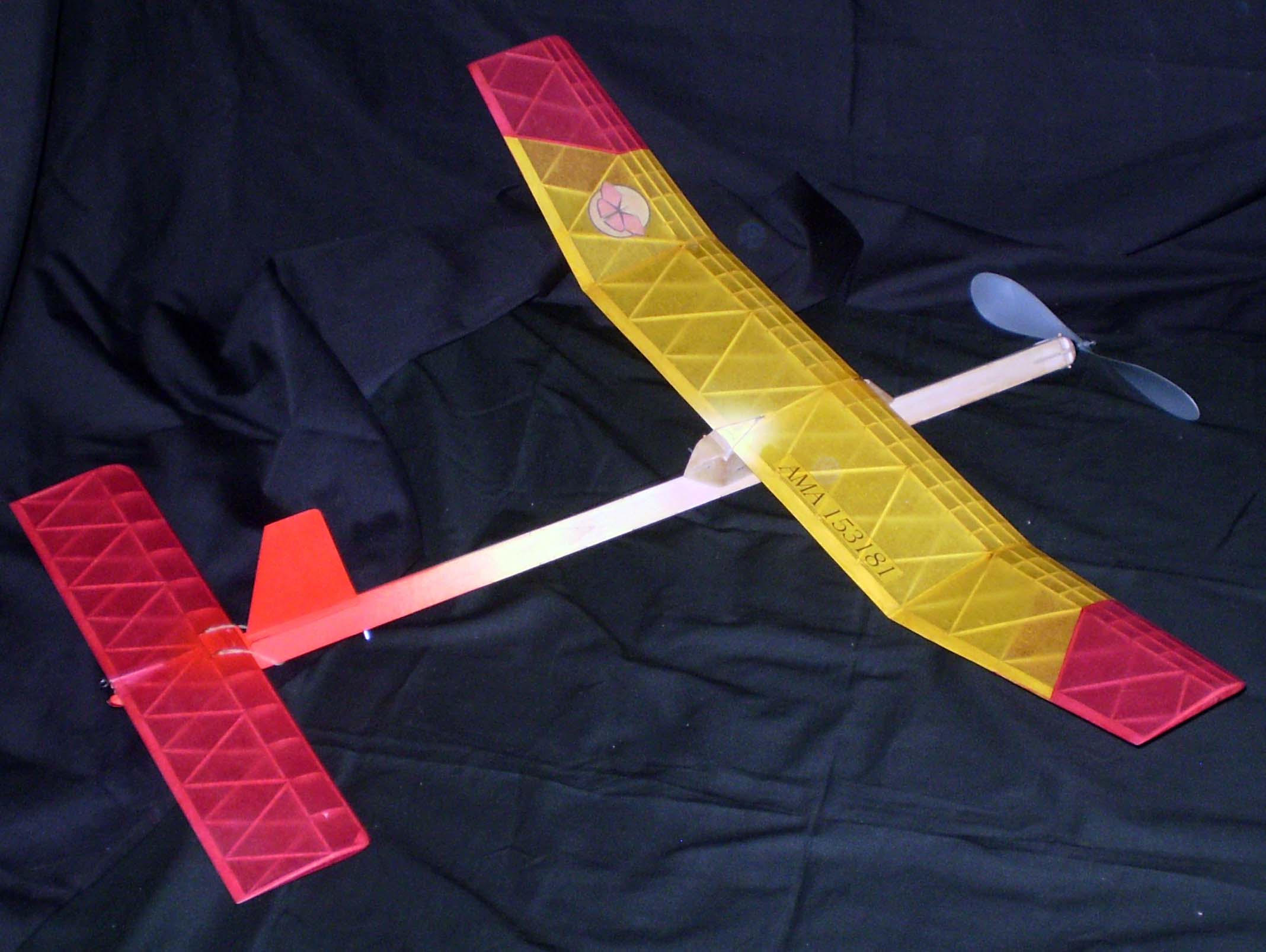

MONARCH pics:
